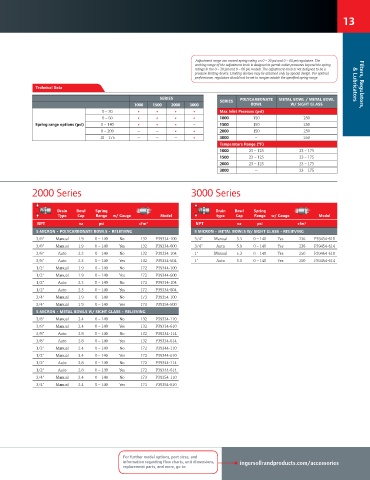

13

Adjustment range can exceed spring rating on 0 – 30 psi and 0 – 60 psi regulators. The
working range of the adjustment knob is designed to permit outlet pressures beyond the spring
ratings in the 0 – 30 psi and 0 – 60 psi models. The adjustment knob is not designed to be a
pressure limiting device. Limiting devices may be obtained only by special design. For optimal
performance, regulators should not be set to ranges outside the speciied spring range.
Technical Data & Lubricators Filters, Regulators,
SErIES PolyCArBoNATE METAl Bowl / METAl Bowl
SErIES
1000 1500 2000 3000 Bowl w/ SIGhT GlASS
0 – 30 • • • • Max Inlet Pressure (psi)
0 – 60 • • • • 1000 150 250
Spring range options (psi) 0 – 140 • • • – 1500 150 250
0 – 200 – – • • 2000 150 250
10 – 175 – – – • 3000 – 250
Temperature range (ºF)
1000 23 – 125 23 – 175
1500 23 – 125 23 – 175
2000 23 – 125 23 – 175
3000 – 23 – 175

2000 Series 3000 Series

Drain Bowl Spring Drain Bowl Spring
Type Cap range w/ Gauge Model type Cap range w/ Gauge Model
NPT oz psi cfm* NPT oz psi cfm*
5 MICroN • PolyCArBoNATE BowlS • rElIEVING 5 MICroN • METAl BowlS w/ SIGhT GlASS • rElIEVING
3/8" Manual 1.9 0 – 140 No 132 P39334-100 3/4" Manual 5.3 0 – 140 Yes 236 P39454-610
3/8" Manual 1.9 0 – 140 Yes 132 P39334-600 3/4" Auto 5.9 0 – 140 Yes 236 P39454-614
3/8" Auto 2.3 0 – 140 No 132 P39334-104 1" Manual 5.3 0 – 140 Yes 250 P39464-610
3/8" Auto 2.3 0 – 140 Yes 132 P39334-604 1" Auto 5.9 0 – 140 Yes 250 P39464-614
1/2" Manual 1.9 0 – 140 No 172 P39344-100
1/2" Manual 1.9 0 – 140 Yes 172 P39344-600
1/2" Auto 2.3 0 – 140 No 172 P39334-104
1/2" Auto 2.3 0 – 140 Yes 172 P39334-604
3/4" Manual 1.9 0 – 140 No 173 P39354-100
3/4" Manual 1.9 0 – 140 Yes 173 P39354-600
5 MICroN • METAl BowlS w/ SIGhT GlASS • rElIEVING
3/8" Manual 2.4 0 – 140 No 132 P39334-110
3/8" Manual 2.4 0 – 140 Yes 132 P39334-610
3/8" Auto 2.8 0 – 140 No 132 P39334-114
3/8" Auto 2.8 0 – 140 Yes 132 P39334-614
1/2" Manual 2.4 0 – 140 No 172 P39344-110
1/2" Manual 2.4 0 – 140 Yes 172 P39344-610
1/2" Auto 2.8 0 – 140 No 172 P39344-114
1/2" Auto 2.8 0 – 140 Yes 172 P39344-614
3/4" Manual 2.4 0 – 140 No 173 P39354-110
3/4" Manual 2.4 0 – 140 Yes 173 P39354-610

For further model options, port sizes, and
information regarding flow charts, unit dimensions, ingersollrandproducts.com/accessories
replacement parts, and more, go to:
