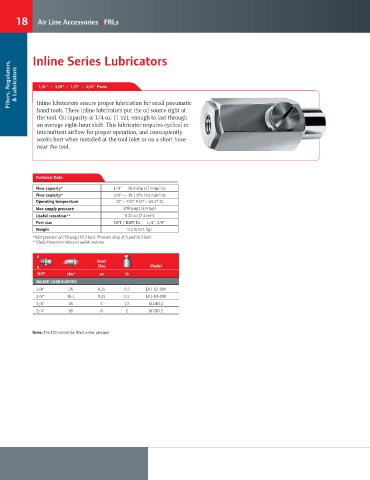

18 Air Line Accessories | FRLs

Inline Series Lubricators

é
è
ç
î è
å ç
í î
1/4 " • 3/8" • 1/2" • 3/4" Ports
ä å
ì í
ë ò
ã
æ ç
ê ñ
Inline lubricators ensure proper lubrication for small pneumatic
é ì
è
ç ð
hand tools. These inline lubricators put the oil source right at
æ
å ï
ä
ã
the tool. Oil capacity is 1/4 oz. (1 ml); enough to last through
â
an average eight-hour shift. This lubricator requires cyclical or
intermittent airlow for proper operation, and consequently
works best when installed at the tool inlet or on a short hose
near the tool.
Technical Data
Flow capacity* 1/4" — 36.0 cfm (17.0 dm /s)
3
Flow capacity* 3/8" — 38.1 cfm (18.0 dm /s)
3
operating temperature 32° – 150° F (0° – 65.5° C)
Max supply pressure 200 psig (13.8 bar)
useful retention** 0.25 oz (7.4 cm )
3
Port size NPT / BSPT-Rc — 1/4", 3/8"
weight 0.2 lb (0.1 kg)
*Inlet pressure of 150 psig (10.3 bar). Pressure drop of 5 psid (0.3 bar).
**Useful retention refers to usable volume.

Bowl
Size Model
NPT cfm* oz lb
INLINE LuBRICAToRS
1/4" 36 0.25 0.2 L01-02-000
3/8" 38.1 0.25 0.2 L01-03-000
3/4" 45 5 1.5 6LUB12
3/4" 80 8 2 8LUB12

Note: The L01 cannot be filled under pressure.
