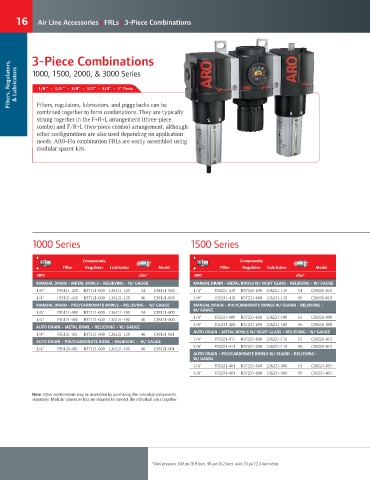

Page 16 - 英格索兰附件图册IngersollRand

16 Air Line Accessories | FRLs | 3-Piece Combinations

3-Piece Combinations
1000, 1500, 2000, & 3000 Series
Ø
×
Ö
Ý ×
Ô Ö
Ü Ý
Ó Ô
1/8 " • 1/4 " • 3/8" • 1/2" • 3/4" • 1" Ports
Û Ü
Ú á
Ò
Õ Ö
Ù à
Ø Û
Filters, regulators, lubricators, and piggybacks can be
×
Ö ß
combined together to form combinations. They are typically
Õ
Ô Þ
Ó
Ò
strung together in the F+R+L arrangement (three-piece
Ñ
combo) and F/R+L (two-piece combo) arrangement, although
other conigurations are also used depending on application
needs. ARO-Flo combination FRLs are easily assembled using
modular spacer kits.

1000 Series 1500 Series

Components Components

Filter regulator lubricator Model Filter regulator lubricator Model
NPT cfm* NPT cfm*
MANUAl DrAIN • METAl BOWlS • rElIEVING • W/ GAUGE MANUAl DrAIN • METAl BOWlS W/ SIGHT GlASS • rElIEVING • W/ GAUGE
1/8" F35111-420 R37111-600 L36111-120 34 C38111-820 1/4" F35221-410 R37221-600 L36221-110 61 C38221-810
1/4" F35121-420 R37121-600 L36121-120 46 C38121-820 3/8" F35231-410 R37231-600 L36231-110 85 C38231-810
MANUAl DrAIN • POlYCArBONATE BOWlS • rElIEVING • W/ GAUGE MANUAl DrAIN • POlYCArBONATE BOWlS W/ GUArD • rElIEVING •
W/ GAUGE
1/8" F35111-400 R37111-600 L36111-100 34 C38111-800
1/4" F35221-400 R37221-600 L36221-100 61 C38221-800
1/4" F35121-400 R37121-600 L36121-100 46 C38121-800
3/8" F35231-400 R37231-600 L36231-100 85 C38231-800
AUTO DrAIN • METAl BOWl • rElIEVING • W/ GAUGE
AUTO DrAIN • METAl BOWlS W/ SIGHT GlASS • rElIEVING • W/ GAUGE
1/4" F35121-421 R37121-600 L36121-120 46 C38121-821
1/4" F35221-411 R37221-600 L36221-110 61 C38221-811
AUTO DrAIN • POlYCArBONATE BOWl • rElIEVING • W/ GAUGE
3/8" F35231-411 R37231-600 L36231-110 85 C38231-811
1/4" F35121-401 R37121-600 L36121-100 46 C38121-801
AUTO DrAIN • POlYCArBONATE BOWlS W/ GUArD • rElIEVING •
W/ GAUGE
1/4" F35221-401 R37221-600 L36221-100 61 C38221-801
3/8" F35231-401 R37231-600 L36231-100 85 C38231-801
Note: Other combinations may be assembled by purchasing the individual components
separately. Modular connector kits are required to connect the individual units together.

*Inlet pressure 100 psi (6.9 bar), 90 psi (6.2 bar), with 33 psi (2.3 bar) drop.
