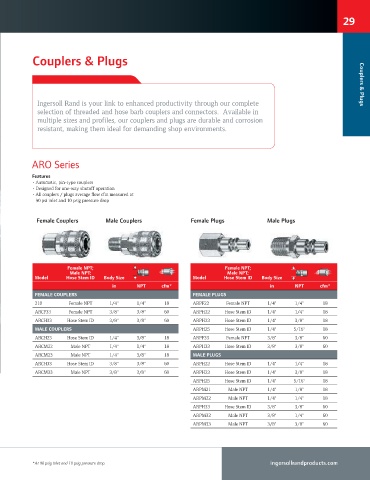

29

Couplers & Plugs

Sets Couplers & Plugs

Ingersoll Rand is your link to enhanced productivity through our complete
selection of threaded and hose barb couplers and connectors. Available in
multiple sizes and profiles, our couplers and plugs are durable and corrosion
resistant, making them ideal for demanding shop environments.

ARO Series

Features
• Automatic, pin-type couplers
• Designed for one-way shutoff operation
• All couplers / plugs average low cfm measured at
90 psi inlet and 10 psig pressure drop

Female Couplers Male Couplers Female Plugs Male Plugs

Female NPT; Female NPT;
Male NPT; Male NPT;
Model Hose Stem ID Body Size Model Hose Stem ID Body Size
in NPT cfm* in NPT cfm*
FEMALE COUPLERS FEMALE PLUGS
210 Female NPT 1/4" 1/4" 18 ARPF22 Female NPT 1/4" 1/4" 18
ARCF33 Female NPT 3/8" 3/8" 60 ARPH22 Hose Stem ID 1/4" 1/4" 18
ARCH33 Hose Stem ID 3/8" 3/8" 60 ARPH23 Hose Stem ID 1/4" 3/8" 18
MALE COUPLERS ARPH25 Hose Stem ID 1/4" 5/16" 18
ARCH23 Hose Stem ID 1/4" 3/8" 18 ARPF33 Female NPT 3/8" 3/8" 60
ARCM22 Male NPT 1/4" 1/4" 18 ARPH33 Hose Stem ID 3/8" 3/8" 60
ARCM23 Male NPT 1/4" 3/8" 18 MALE PLUGS
ARCH33 Hose Stem ID 3/8" 3/8" 60 ARPH22 Hose Stem ID 1/4" 1/4" 18
ARCM33 Male NPT 3/8" 3/8" 60 ARPH23 Hose Stem ID 1/4" 3/8" 18
ARPH25 Hose Stem ID 1/4" 5/16" 18
ARPM21 Male NPT 1/4" 1/8" 18
ARPM22 Male NPT 1/4" 1/4" 18
ARPH33 Hose Stem ID 3/8" 3/8" 60
ARPM32 Male NPT 3/8" 1/4" 60
ARPM33 Male NPT 3/8" 3/8" 60

*At 90 psig inlet and 10 psig pressure drop. P LM TMU V P X Z RU W YQ X R[
