31

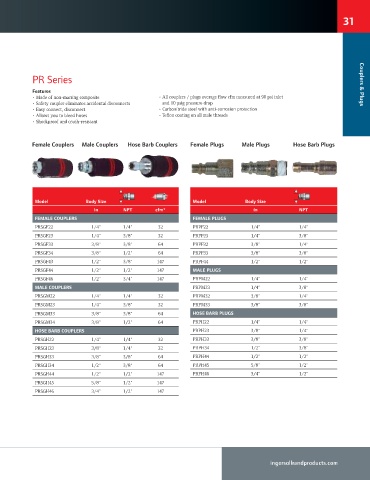

PR Series Couplers & Plugs
Features
• Made of non-marring composite • All couplers / plugs average low cfm measured at 90 psi inlet
• Safety coupler eliminates accidental disconnects and 10 psig pressure drop
• Easy connect, disconnect • Carbonitride steel with anti-corrosion protection
• Allows you to bleed hoses • Telon coating on all male threads
• Shockproof and crush-resistant

Female Couplers Male Couplers Hose Barb Couplers Female Plugs Male Plugs Hose Barb Plugs

Model Body Size Model Body Size
in NPT cfm* in NPT
FEMALE COUPLERS FEMALE PLUGS
PRSGF22 1/4" 1/4" 32 PRPF22 1/4" 1/4"
PRSGF23 1/4" 3/8" 32 PRPF23 1/4" 3/8"
PRSGF33 3/8" 3/8" 64 PRPF32 3/8" 1/4"
PRSGF34 3/8" 1/2" 64 PRPF33 3/8" 3/8"
PRSGF43 1/2" 3/8" 147 PRPF44 1/2" 1/2"
PRSGF44 1/2" 1/2" 147 MALE PLUGS
PRSGF46 1/2" 3/4" 147 PRPM22 1/4" 1/4"
MALE COUPLERS PRPM23 1/4" 3/8"
PRSGM22 1/4" 1/4" 32 PRPM32 3/8" 1/4"
PRSGM23 1/4" 3/8" 32 PRPM33 3/8" 3/8"
PRSGM33 3/8" 3/8" 64 HOSE BARB PLUGS
PRSGM34 3/8" 1/2" 64 PRPH22 1/4" 1/4"
HOSE BARB COUPLERS PRPH23 3/8" 1/4"
PRSGH22 1/4" 1/4" 32 PRPH33 3/8" 3/8"
PRSGH23 3/8" 1/4" 32 PRPH34 1/2" 3/8"
PRSGH33 3/8" 3/8" 64 PRPH44 1/2" 1/2"
PRSGH34 1/2" 3/8" 64 PRPH45 5/8" 1/2"
PRSGH44 1/2" 1/2" 147 PRPH46 3/4" 1/2"
PRSGH45 5/8" 1/2" 147
PRSGH46 3/4" 1/2" 147 \] f]g h ` m k cg j lb k cn
