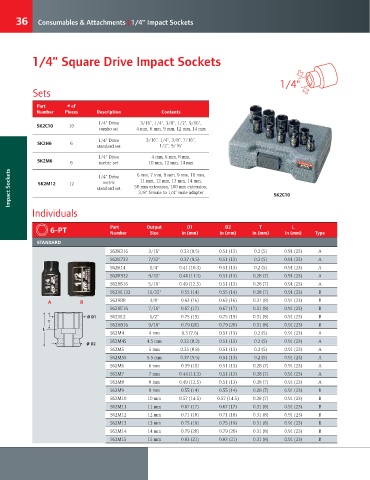

36 Consumables & Attachments | 1/4" Impact Sockets

1/4" Square Drive Impact Sockets

1/4"
Sets
Sets

Part # of
Number Pieces Description Contents
1/4" Drive 3/16", 1/4", 3/8", 1/2", 9/16",
SK2C10 10
combo set 4 mm, 6 mm, 9 mm, 12 mm, 14 mm
1/4" Drive 3/16", 1/4", 3/8", 7/16",
SK2H6 6
standard set 1/2", 9/16"
1/4" Drive 4 mm, 6 mm, 8 mm,
SK2M6 6 metric set 10 mm, 12 mm, 14 mm

Impact Sockets SK2M12 12 standard set 50 mm extension, 100 mm extension, SK2C10
6 mm, 7 mm, 8 mm, 9 mm, 10 mm,
1/4" Drive
11 mm, 12 mm, 13 mm, 14 mm,
metric
3/8" female to 1/4" male adapter

Individuals

Part Output D1 D2 T L
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type

STANDARD
S62H316 3/16" 0.33 (8.5) 0.51 (13) 0.2 (5) 0.91 (23) A
S62H732 7/32" 0.37 (9.5) 0.51 (13) 0.2 (5) 0.91 (23) A
S62H14 1/4" 0.41 (10.3) 0.51 (13) 0.2 (5) 0.91 (23) A
S62H932 9/32" 0.44 (11.3) 0.51 (13) 0.28 (7) 0.91 (23) A
S62H516 5/16" 0.49 (12.5) 0.51 (13) 0.28 (7) 0.91 (23) A
S62H1132 11/32" 0.55 (14) 0.55 (14) 0.28 (7) 0.91 (23) B
S62H38 3/8" 0.63 (16) 0.63 (16) 0.31 (8) 0.91 (23) B
A B
S62H716 7/16" 0.67 (17) 0.67 (17) 0.31 (8) 0.91 (23) B
Ø D1 S62H12 1/2" 0.75 (19) 0.75 (19) 0.31 (8) 0.91 (23) B
T
S62H916 9/16" 0.79 (20) 0.79 (20) 0.31 (8) 0.91 (23) B
L
S62M4 4 mm 0.3 (7.6) 0.51 (13) 0.2 (5) 0.91 (23) A
S62M45 4.5 mm 0.32 (8.2) 0.51 (13) 0.2 (5) 0.91 (23) A
Ø D2
S62M5 5 mm 0.35 (8.8) 0.51 (13) 0.2 (5) 0.91 (23) A
S62M55 5.5 mm 0.37 (9.5) 0.51 (13) 0.2 (5) 0.91 (23) A
S62M6 6 mm 0.39 (10) 0.51 (13) 0.28 (7) 0.91 (23) A
S62M7 7 mm 0.44 (11.3) 0.51 (13) 0.28 (7) 0.91 (23) A
S62M8 8 mm 0.49 (12.5) 0.51 (13) 0.28 (7) 0.91 (23) A
S62M9 9 mm 0.55 (14) 0.55 (14) 0.28 (7) 0.91 (23) B
S62M10 10 mm 0.57 (14.5) 0.57 (14.5) 0.28 (7) 0.91 (23) B
S62M11 11 mm 0.67 (17) 0.67 (17) 0.31 (8) 0.91 (23) B
S62M12 12 mm 0.71 (18) 0.71 (18) 0.31 (8) 0.91 (23) B
S62M13 13 mm 0.75 (19) 0.75 (19) 0.31 (8) 0.91 (23) B
S62M14 14 mm 0.79 (20) 0.79 (20) 0.31 (8) 0.91 (23) B
S62M15 15 mm 0.83 (21) 0.83 (21) 0.31 (8) 0.91 (23) B
