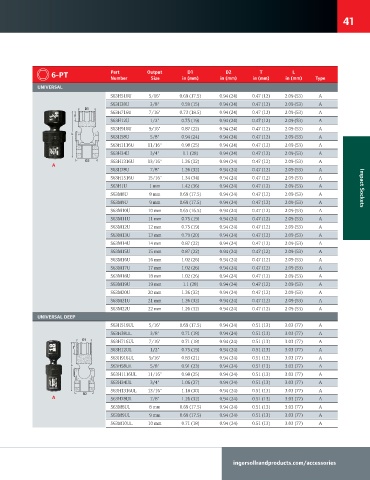

6-PT Part Output D1 D2 T L
Number Size in (mm) in (mm) in (mm) in (mm) Type

UNIVERSAL
S63H516U 5/16" 0.69 (17.5) 0.94 (24) 0.47 (12) 2.09 (53) A
S63H38U 3/8" 0.59 (15) 0.94 (24) 0.47 (12) 2.09 (53) A
D1
S63H716U 7/16" 0.73 (18.5) 0.94 (24) 0.47 (12) 2.09 (53) A
T
S63H12U 1/2" 0.75 (19) 0.94 (24) 0.47 (12) 2.09 (53) A
S63H916U 9/16" 0.87 (22) 0.94 (24) 0.47 (12) 2.09 (53) A
L
S63H58U 5/8" 0.94 (24) 0.94 (24) 0.47 (12) 2.09 (53) A
S63H1116U 11/16" 0.98 (25) 0.94 (24) 0.47 (12) 2.09 (53) A
S63H34U 3/4" 1.1 (28) 0.94 (24) 0.47 (12) 2.09 (53) A
D2 S63H1316U 13/16" 1.26 (32) 0.94 (24) 0.47 (12) 2.09 (53) A
A
S63H78U 7/8" 1.26 (32) 0.94 (24) 0.47 (12) 2.09 (53) A
S63H1516U 15/16" 1.34 (34) 0.94 (24) 0.47 (12) 2.09 (53) A
S63H1U 1 mm 1.42 (36) 0.94 (24) 0.47 (12) 2.09 (53) A Impact Sockets
S63M8U 8 mm 0.69 (17.5) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M9U 9 mm 0.69 (17.5) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M10U 10 mm 0.65 (16.5) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M11U 11 mm 0.75 (19) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M12U 12 mm 0.75 (19) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M13U 13 mm 0.79 (20) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M14U 14 mm 0.87 (22) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M15U 15 mm 0.87 (22) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M16U 16 mm 1.02 (26) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M17U 17 mm 1.02 (26) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M18U 18 mm 1.02 (26) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M19U 19 mm 1.1 (28) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M20U 20 mm 1.26 (32) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M21U 21 mm 1.26 (32) 0.94 (24) 0.47 (12) 2.09 (53) A
S63M22U 22 mm 1.26 (32) 0.94 (24) 0.47 (12) 2.09 (53) A
UNIVERSAL DEEP
S63H516UL 5/16" 0.69 (17.5) 0.94 (24) 0.51 (13) 3.03 (77) A
S63H38UL 3/8" 0.71 (18) 0.94 (24) 0.51 (13) 3.03 (77) A
D1
S63H716UL 7/16" 0.71 (18) 0.94 (24) 0.51 (13) 3.03 (77) A
T
S63H12UL 1/2" 0.75 (19) 0.94 (24) 0.51 (13) 3.03 (77) A
S63H916UL 9/16" 0.83 (21) 0.94 (24) 0.51 (13) 3.03 (77) A
L
S63H58UL 5/8" 0.91 (23) 0.94 (24) 0.51 (13) 3.03 (77) A
S63H1116UL 11/16" 0.98 (25) 0.94 (24) 0.51 (13) 3.03 (77) A
S63H34UL 3/4" 1.06 (27) 0.94 (24) 0.51 (13) 3.03 (77) A
S63H1316UL 13/16" 1.18 (30) 0.94 (24) 0.51 (13) 3.03 (77) A
D2
A S63H78UL 7/8" 1.26 (32) 0.94 (24) 0.51 (13) 3.03 (77) A
S63M8UL 8 mm 0.69 (17.5) 0.94 (24) 0.51 (13) 3.03 (77) A
S63M9UL 9 mm 0.69 (17.5) 0.94 (24) 0.51 (13) 3.03 (77) A
S63M10UL 10 mm 0.71 (18) 0.94 (24) 0.51 (13) 3.03 (77) A
