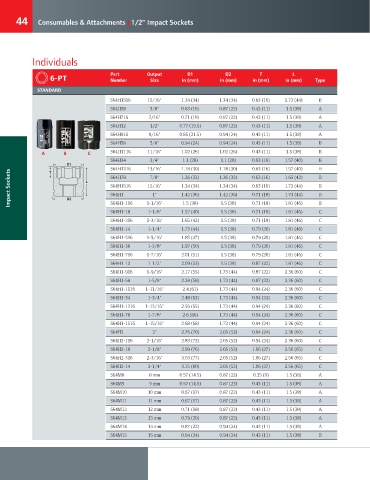

44 Consumables & Attachments | 1/2" Impact Sockets

Individuals

Part Output D1 D2 T L
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type
STANDARD
S64H1516 15/16" 1.34 (34) 1.34 (34) 0.63 (16) 1.73 (44) B
S64H38 3/8" 0.63 (16) 0.87 (22) 0.43 (11) 1.5 (38) A
S64H716 7/16" 0.71 (18) 0.87 (22) 0.43 (11) 1.5 (38) A
S64H12 1/2" 0.77 (19.5) 0.87 (22) 0.43 (11) 1.5 (38) A
S64H916 9/16" 0.85 (21.5) 0.94 (24) 0.43 (11) 1.5 (38) A
S64H58 5/8" 0.94 (24) 0.94 (24) 0.43 (11) 1.5 (38) B
A B C S64H1116 11/16" 1.02 (26) 1.02 (26) 0.43 (11) 1.5 (38) B
S64H34 3/4" 1.1 (28) 1.1 (28) 0.63 (16) 1.57 (40) B
D1
S64H1316 13/16" 1.18 (30) 1.18 (30) 0.63 (16) 1.57 (40) B B
Impact Sockets D2 L S64H1516 15/16" 1.34 (34) 1.34 (34) 0.63 (16) 1.73 (44) B B
T
7/8"
1.26 (32)
1.26 (32)
1.65 (42)
0.63 (16)
S64H78
0.71 (18)
1.73 (44)
1.42 (36)
1.42 (36)
S64H1
1"
S64H1-116
1.5 (38)
0.71 (18)
S64H1-18 1-1/16" 1.57 (40) 1.5 (38) 0.71 (18) 1.81 (46) B C
1-1/8"
1.81 (46)
1.5 (38)
S64H1-316 1-3/16" 1.65 (42) 1.5 (38) 0.71 (18) 1.81 (46) C
S64H1-14 1-1/4" 1.73 (44) 1.5 (38) 0.79 (20) 1.81 (46) C
S64H1-516 1-5/16" 1.85 (47) 1.5 (38) 0.79 (20) 1.81 (46) C
S64H1-38 1-3/8" 1.97 (50) 1.5 (38) 0.79 (20) 1.81 (46) C
S64H1-716 1-7/16" 2.01 (51) 1.5 (38) 0.79 (20) 1.81 (46) C
S64H1-12 1-1/2" 2.09 (53) 1.5 (38) 0.87 (22) 1.81 (46) C
S64H1-916 1-9/16" 2.17 (55) 1.73 (44) 0.87 (22) 2.36 (60) C
S64H1-58 1-5/8" 2.28 (58) 1.73 (44) 0.87 (22) 2.36 (60) C
S64H1-1116 1-11/16" 2.4 (61) 1.73 (44) 0.94 (24) 2.36 (60) C
S64H1-34 1-3/4" 2.48 (63) 1.73 (44) 0.94 (24) 2.36 (60) C
S64H1-1316 1-13/16" 2.56 (65) 1.73 (44) 0.94 (24) 2.36 (60) C
S64H1-78 1-7/8" 2.6 (66) 1.73 (44) 0.94 (24) 2.36 (60) C
S64H1-1516 1-15/16" 2.68 (68) 1.73 (44) 0.94 (24) 2.36 (60) C
S64H2 2" 2.76 (70) 2.05 (52) 0.94 (24) 2.36 (60) C
S64H2-116 2-1/16" 2.83 (72) 2.05 (52) 0.94 (24) 2.36 (60) C
S64H2-18 2-1/8" 2.99 (76) 2.05 (52) 1.06 (27) 2.56 (65) C
S64H2-316 2-3/16" 3.03 (77) 2.05 (52) 1.06 (27) 2.56 (65) C
S64H2-14 2-1/4" 3.15 (80) 2.05 (52) 1.06 (27) 2.56 (65) C
S64M8 8 mm 0.57 (14.5) 0.87 (22) 0.35 (9) 1.5 (38) A
S64M9 9 mm 0.57 (14.5) 0.87 (22) 0.43 (11) 1.5 (38) A
S64M10 10 mm 0.67 (17) 0.87 (22) 0.43 (11) 1.5 (38) A
S64M11 11 mm 0.67 (17) 0.87 (22) 0.43 (11) 1.5 (38) A
S64M12 12 mm 0.71 (18) 0.87 (22) 0.43 (11) 1.5 (38) A
S64M13 13 mm 0.79 (20) 0.87 (22) 0.43 (11) 1.5 (38) A
S64M14 14 mm 0.87 (22) 0.94 (24) 0.43 (11) 1.5 (38) A
S64M15 15 mm 0.94 (24) 0.94 (24) 0.43 (11) 1.5 (38) B
