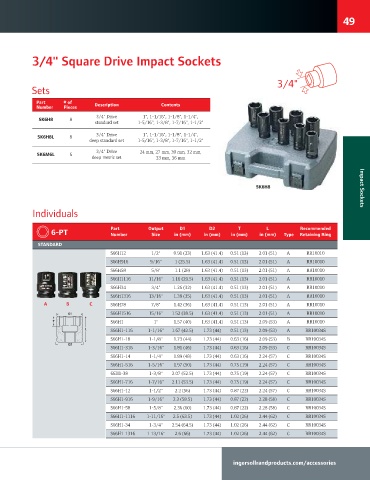

P. 49
49
3/4" Square Drive Impact Sockets
3/4"
Sets
Part # of Description Contents
Number Pieces
3/4" Drive 1", 1-1/16", 1-1/8", 1-1/4",
SK6H8 8
standard set 1-5/16", 1-3/8", 1-7/16", 1-1/2"
3/4" Drive 1", 1-1/16", 1-1/8", 1-1/4",
SK6H8L 8
deep standard set 1-5/16", 1-3/8", 1-7/16", 1-1/2"
3/4" Drive 24 mm, 27 mm, 30 mm, 32 mm,
SK6M6L 6
deep metric set 33 mm, 36 mm
SK6H8 Impact Sockets
Individuals
Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring
STANDARD
S66H12 1/2" 0.91 (23) 1.63 (41.4) 0.51 (13) 2.01 (51) A RR10010
S66H916 9/16" 1 (25.5) 1.63 (41.4) 0.51 (13) 2.01 (51) A RR10010
S66H58 5/8" 1.1 (28) 1.63 (41.4) 0.51 (13) 2.01 (51) A RR10010
S66H1116 11/16" 1.16 (29.5) 1.63 (41.4) 0.51 (13) 2.01 (51) A RR10010
S66H34 3/4" 1.26 (32) 1.63 (41.4) 0.51 (13) 2.01 (51) A RR10010
S66H1316 13/16" 1.38 (35) 1.63 (41.4) 0.51 (13) 2.01 (51) A RR10010
A B C S66H78 7/8" 1.42 (36) 1.63 (41.4) 0.51 (13) 2.01 (51) A RR10010
D1 S66H1516 15/16" 1.52 (38.5) 1.63 (41.4) 0.51 (13) 2.01 (51) A RR10010
T S66H1 1" 1.57 (40) 1.63 (41.4) 0.51 (13) 2.09 (53) A RR10010
L S66H1-116 1-1/16" 1.67 (42.5) 1.73 (44) 0.51 (13) 2.09 (53) A RR10034S
S66H1-18 1-1/8" 1.73 (44) 1.73 (44) 0.63 (16) 2.09 (53) B RR10034S
D2
S66H1-316 1-3/16" 1.81 (46) 1.73 (44) 0.63 (16) 2.09 (53) C RR10034S
S66H1-14 1-1/4" 1.89 (48) 1.73 (44) 0.63 (16) 2.24 (57) C RR10034S
S66H1-516 1-5/16" 1.97 (50) 1.73 (44) 0.75 (19) 2.24 (57) C RR10034S
66H1-38 1-3/8" 2.07 (52.5) 1.73 (44) 0.75 (19) 2.24 (57) C RR10034S
S66H1-716 1-7/16" 2.11 (53.5) 1.73 (44) 0.75 (19) 2.24 (57) C RR10034S
S66H1-12 1-1/2" 2.2 (56) 1.73 (44) 0.87 (22) 2.24 (57) C RR10034S
S66H1-916 1-9/16" 2.3 (58.5) 1.73 (44) 0.87 (22) 2.28 (58) C RR10034S
S66H1-58 1-5/8" 2.36 (60) 1.73 (44) 0.87 (22) 2.28 (58) C RR10034S
S66H1-1116 1-11/16" 2.5 (63.5) 1.73 (44) 1.02 (26) 2.44 (62) C RR10034S
S66H1-34 1-3/4" 2.54 (64.5) 1.73 (44) 1.02 (26) 2.44 (62) C RR10034S
S66H1-1316 1-13/16" 2.6 (66) 1.73 (44) 1.02 (26) 2.44 (62) C RR10034S
ingersollrandproducts.com/accessories
