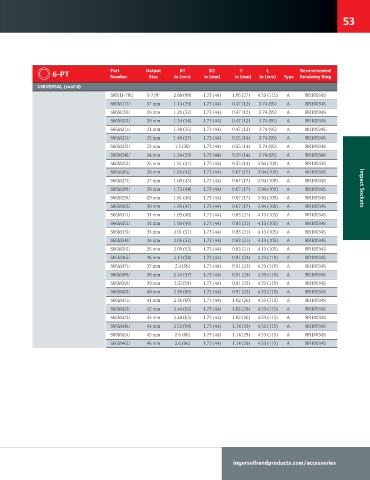

53
Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring
UNIVERSAL (cont'd)
S66H1-78U 1-7/8" 2.68 (68) 1.73 (44) 1.06 (27) 4.53 (115) A RR10034S
S66M17U 17 mm 1.14 (29) 1.73 (44) 0.47 (12) 3.74 (95) A RR10034S
S66M19U 19 mm 1.26 (32) 1.73 (44) 0.47 (12) 3.74 (95) A RR10034S
S66M20U 20 mm 1.34 (34) 1.73 (44) 0.47 (12) 3.74 (95) A RR10034S
S66M21U 21 mm 1.38 (35) 1.73 (44) 0.47 (12) 3.74 (95) A RR10034S
S66M22U 22 mm 1.46 (37) 1.73 (44) 0.55 (14) 3.74 (95) A RR10034S
S66M23U 23 mm 1.5 (38) 1.73 (44) 0.55 (14) 3.74 (95) A RR10034S
S66M24U 24 mm 1.54 (39) 1.73 (44) 0.55 (14) 3.74 (95) A RR10034S
S66M25U 25 mm 1.61 (41) 1.73 (44) 0.55 (14) 3.94 (100) A RR10034S
S66M26U 26 mm 1.65 (42) 1.73 (44) 0.67 (17) 3.94 (100) A RR10034S
S66M27U 27 mm 1.69 (43) 1.73 (44) 0.67 (17) 3.94 (100) A RR10034S
S66M28U 28 mm 1.73 (44) 1.73 (44) 0.67 (17) 3.94 (100) A RR10034S Impact Sockets
S66M29U 29 mm 1.81 (46) 1.73 (44) 0.67 (17) 3.94 (100) A RR10034S
S66M30U 30 mm 1.85 (47) 1.73 (44) 0.67 (17) 3.94 (100) A RR10034S
S66M31U 31 mm 1.89 (48) 1.73 (44) 0.83 (21) 4.13 (105) A RR10034S
S66M32U 32 mm 1.93 (49) 1.73 (44) 0.83 (21) 4.13 (105) A RR10034S
S66M33U 33 mm 2.01 (51) 1.73 (44) 0.83 (21) 4.13 (105) A RR10034S
S66M34U 34 mm 2.05 (52) 1.73 (44) 0.83 (21) 4.13 (105) A RR10034S
S66M35U 35 mm 2.09 (53) 1.73 (44) 0.83 (21) 4.13 (105) A RR10034S
S66M36U 36 mm 2.13 (54) 1.73 (44) 0.91 (23) 4.33 (110) A RR10034S
S66M37U 37 mm 2.2 (56) 1.73 (44) 0.91 (23) 4.33 (110) A RR10034S
S66M38U 38 mm 2.24 (57) 1.73 (44) 0.91 (23) 4.33 (110) A RR10034S
S66M39U 39 mm 2.32(59) 1.73 (44) 0.91 (23) 4.33 (110) A RR10034S
S66M40U 40 mm 2.36 (60) 1.73 (44) 0.91 (23) 4.33 (110) A RR10034S
S66M41U 41 mm 2.36 (60) 1.73 (44) 1.02 (26) 4.53 (115) A RR10034S
S66M42U 42 mm 2.44 (62) 1.73 (44) 1.02 (26) 4.53 (115) A RR10034S
S66M43U 43 mm 2.48 (63) 1.73 (44) 1.02 (26) 4.53 (115) A RR10034S
S66M44U 44 mm 2.52 (64) 1.73 (44) 1.14 (29) 4.53 (115) A RR10034S
S66M45U 45 mm 2.6 (66) 1.73 (44) 1.14 (29) 4.53 (115) A RR10034S
S66M46U 46 mm 2.6 (66) 1.73 (44) 1.14 (29) 4.53 (115) A RR10034S
