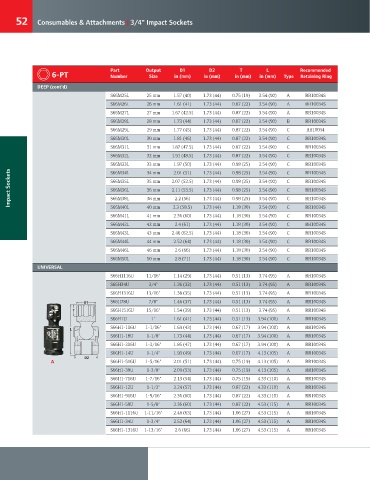

52 Consumables & Attachments | 3/4" Impact Sockets

Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring

DEEP (cont'd)
S66M25L 25 mm 1.57 (40) 1.73 (44) 0.75 (19) 3.54 (90) A RR10034S
S66M26L 26 mm 1.61 (41) 1.73 (44) 0.87 (22) 3.54 (90) A RR10034S
S66M27L 27 mm 1.67 (42.5) 1.73 (44) 0.87 (22) 3.54 (90) A RR10034S
S66M28L 28 mm 1.73 (44) 1.73 (44) 0.87 (22) 3.54 (90) B RR10034S
S66M29L 29 mm 1.77 (45) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034
S66M30L 30 mm 1.81 (46) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034S
S66M31L 31 mm 1.87 (47.5) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034S
S66M32L 32 mm 1.91 (48.5) 1.73 (44) 0.87 (22) 3.54 (90) C RR10034S
S66M33L 33 mm 1.97 (50) 1.73 (44) 0.98 (25) 3.54 (90) C RR10034S
Impact Sockets S66M35L 35 mm 2.07 (52.5) 1.73 (44) 0.98 (25) 3.54 (90) C RR10034S
C
S66M34L
34 mm
3.54 (90)
0.98 (25)
RR10034S
2.01 (51)
1.73 (44)
C
1.73 (44)
3.54 (90)
2.11 (53.5)
S66M36L
0.98 (25)
RR10034S
36 mm
3.54 (90)
C
38 mm
2.2 (56)
1.73 (44)
S66M38L
RR10034S
0.98 (25)
S66M40L
41 mm
1.18 (30)
3.54 (90)
1.73 (44)
S66M41L 40 mm 2.3 (58.5) 1.73 (44) 1.18 (30) 3.54 (90) C RR10034S
RR10034S
C
2.36 (60)
S66M42L 42 mm 2.4 (61) 1.73 (44) 1.18 (30) 3.54 (90) C RR10034S
S66M43L 43 mm 2.46 (62.5) 1.73 (44) 1.18 (30) 3.54 (90) C RR10034S
S66M44L 44 mm 2.52 (64) 1.73 (44) 1.18 (30) 3.54 (90) C RR10034S
S66M46L 46 mm 2.6 (66) 1.73 (44) 1.18 (30) 3.54 (90) C RR10034S
S66M50L 50 mm 2.8 (71) 1.73 (44) 1.18 (30) 3.54 (90) C RR10034S
UNIVERSAL
S66H1116U 11/16" 1.14 (29) 1.73 (44) 0.51 (13) 3.74 (95) A RR10034S
S66H34U 3/4" 1.26 (32) 1.73 (44) 0.51 (13) 3.74 (95) A RR10034S
S66H1316U 13/16" 1.38 (35) 1.73 (44) 0.51 (13) 3.74 (95) A RR10034S
D1 S66H78U 7/8" 1.46 (37) 1.73 (44) 0.51 (13) 3.74 (95) A RR10034S
T S66H1516U 15/16" 1.54 (39) 1.73 (44) 0.51 (13) 3.74 (95) A RR10034S
S66H1U 1" 1.61 (41) 1.73 (44) 0.51 (13) 3.94 (100) A RR10034S
S66H1-116U 1-1/16" 1.69 (43) 1.73 (44) 0.67 (17) 3.94 (100) A RR10034S
L
S66H1-18U 1-1/8" 1.73 (44) 1.73 (44) 0.67 (17) 3.94 (100) A RR10034S
S66H1-316U 1-3/16" 1.85 (47) 1.73 (44) 0.67 (17) 3.94 (100) A RR10034S
S66H1-14U 1-1/4" 1.93 (49) 1.73 (44) 0.67 (17) 4.13 (105) A RR10034S
D2
A S66H1-516U 1-5/16" 2.01 (51) 1.73 (44) 0.75 (19) 4.13 (105) A RR10034S
S66H1-38U 1-3/8" 2.09 (53) 1.73 (44) 0.75 (19) 4.13 (105) A RR10034S
S66H1-716U 1-7/16" 2.13 (54) 1.73 (44) 0.75 (19) 4.33 (110) A RR10034S
S66H1-12U 1-1/2" 2.24 (57) 1.73 (44) 0.87 (22) 4.33 (110) A RR10034S
S66H1-916U 1-9/16" 2.36 (60) 1.73 (44) 0.87 (22) 4.33 (110) A RR10034S
S66H1-58U 1-5/8" 2.36 (60) 1.73 (44) 0.87 (22) 4.53 (115) A RR10034S
S66H1-1116U 1-11/16" 2.48 (63) 1.73 (44) 1.06 (27) 4.53 (115) A RR10034S
S66H1-34U 1-3/4" 2.52 (64) 1.73 (44) 1.06 (27) 4.53 (115) A RR10034S
S66H1-1316U 1-13/16" 2.6 (66) 1.73 (44) 1.06 (27) 4.53 (115) A RR10034S
