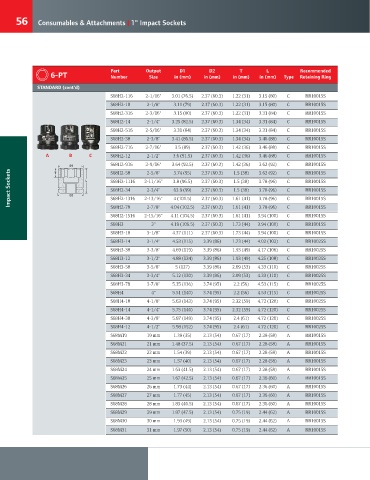

56 Consumables & Attachments | 1" Impact Sockets

Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring

STANDARD (cont'd)
S68H2-116 2-1/16" 3.01 (76.5) 2.37 (60.3) 1.22 (31) 3.15 (80) C RR10015S
S68H2-18 2-1/8" 3.11 (79) 2.37 (60.3) 1.22 (31) 3.15 (80) C RR10015S
S68H2-316 2-3/16" 3.15 (80) 2.37 (60.3) 1.22 (31) 3.31 (84) C RR10015S
S68H2-14 2-1/4" 3.25 (82.5) 2.37 (60.3) 1.34 (34) 3.31 (84) C RR10015S
S68H2-516 2-5/16" 3.31 (84) 2.37 (60.3) 1.34 (34) 3.31 (84) C RR10015S
S68H2-38 2-3/8" 3.41 (86.5) 2.37 (60.3) 1.34 (34) 3.46 (88) C RR10015S
S68H2-716 2-7/16" 3.5 (89) 2.37 (60.3) 1.42 (36) 3.46 (88) C RR10015S
A B C S68H2-12 2-1/2" 3.6 (91.5) 2.37 (60.3) 1.42 (36) 3.46 (88) C RR10015S
S68H2-916 2-9/16" 3.64 (92.5) 2.37 (60.3) 1.42 (36) 3.62 (92) C RR10015S
D1 S68H2-58 2-5/8" 3.74 (95) 2.37 (60.3) 1.5 (38) 3.62 (92) C RR10015S
Impact Sockets D2 L S68H2-1116 2-11/16" 3.8 (96.5) 2.37 (60.3) 1.61 (41) 3.78 (96) C RR10015S
T
1.5 (38)
2.37 (60.3)
2-3/4"
63.9 (99)
3.78 (96)
C
RR10015S
1.5 (38)
S68H2-34
S68H2-1316
RR10015S
C
4 (101.5)
3.78 (96)
2-13/16"
2.37 (60.3)
3.78 (96)
S68H2-78
2-7/8"
S68H2-1516 2-15/16" 4.04 (102.5) 2.37 (60.3) 1.61 (41) 3.94 (100) C RR10015S
1.61 (41)
2.37 (60.3)
RR10015S
C
4.11 (104.5)
S68H3 3" 4.19 (106.5) 2.37 (60.3) 1.73 (44) 3.94 (100) C RR10015S
S68H3-18 3-1/8" 4.37 (111) 2.37 (60.3) 1.73 (44) 3.94 (100) C RR10015S
S68H3-14 3-1/4" 4.53 (115) 3.39 (86) 1.73 (44) 4.02 (102) C RR10025S
S68H3-38 3-3/8" 4.69 (119) 3.39 (86) 1.93 (49) 4.17 (106) C RR10025S
S68H3-12 3-1/2" 4.88 (124) 3.39 (86) 1.93 (49) 4.25 (108) C RR10025S
S68H3-58 3-5/8" 5 (127) 3.39 (86) 2.09 (53) 4.33 (110) C RR10025S
S68H3-34 3-3/4" 5.12 (130) 3.39 (86) 2.09 (53) 4.33 (110) C RR10025S
S68H3-78 3-7/8" 5.35 (136) 3.74 (95) 2.2 (56) 4.53 (115) C RR10025S
S68H4 4" 5.51 (140) 3.74 (95) 2.2 (56) 4.53 (115) C RR10025S
S68H4-18 4-1/8" 5.63 (143) 3.74 (95) 2.32 (59) 4.72 (120) C RR10025S
S68H4-14 4-1/4" 5.75 (146) 3.74 (95) 2.32 (59) 4.72 (120) C RR10025S
S68H4-38 4-3/8" 5.87 (149) 3.74 (95) 2.4 (61) 4.72 (120) C RR10025S
S68H4-12 4-1/2" 5.98 (152) 3.74 (95) 2.4 (61) 4.72 (120) C RR10025S
S68M19 19 mm 1.38 (35) 2.13 (54) 0.67 (17) 2.28 (58) A RR10015S
S68M21 21 mm 1.48 (37.5) 2.13 (54) 0.67 (17) 2.28 (58) A RR10015S
S68M22 22 mm 1.54 (39) 2.13 (54) 0.67 (17) 2.28 (58) A RR10015S
S68M23 23 mm 1.57 (40) 2.13 (54) 0.67 (17) 2.28 (58) A RR10015S
S68M24 24 mm 1.63 (41.5) 2.13 (54) 0.67 (17) 2.28 (58) A RR10015S
S68M25 25 mm 1.67 (42.5) 2.13 (54) 0.67 (17) 2.36 (60) A RR10015S
S68M26 26 mm 1.73 (44) 2.13 (54) 0.67 (17) 2.36 (60) A RR10015S
S68M27 27 mm 1.77 (45) 2.13 (54) 0.67 (17) 2.36 (60) A RR10015S
S68M28 28 mm 1.83 (46.5) 2.13 (54) 0.67 (17) 2.36 (60) A RR10015S
S68M29 29 mm 1.87 (47.5) 2.13 (54) 0.75 (19) 2.44 (62) A RR10015S
S68M30 30 mm 1.93 (49) 2.13 (54) 0.75 (19) 2.44 (62) A RR10015S
S68M31 31 mm 1.97 (50) 2.13 (54) 0.75 (19) 2.44 (62) A RR10015S
