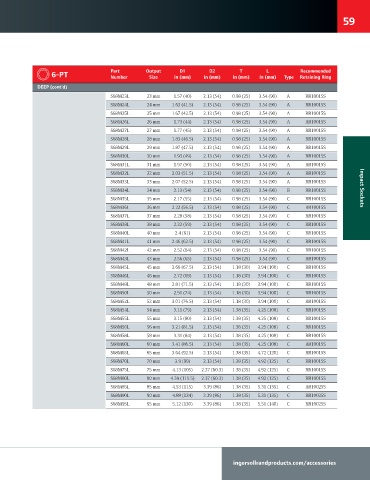

P. 59
59
Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring
DEEP (cont'd)
S68M23L 23 mm 1.57 (40) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M24L 24 mm 1.63 (41.5) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M25L 25 mm 1.67 (42.5) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M26L 26 mm 1.73 (44) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M27L 27 mm 1.77 (45) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M28L 28 mm 1.83 (46.5) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M29L 29 mm 1.87 (47.5) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M30L 30 mm 1.93 (49) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M31L 31 mm 1.97 (50) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M32L 32 mm 2.03 (51.5) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M33L 33 mm 2.07 (52.5) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M34L 34 mm 2.13 (54) 2.13 (54) 0.98 (25) 3.54 (90) B RR10015S Impact Sockets
S68M35L 35 mm 2.17 (55) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68M36L 36 mm 2.22 (56.5) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68M37L 37 mm 2.28 (58) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68M38L 38 mm 2.32 (59) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68M40L 40 mm 2.4 (61) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68M41L 41 mm 2.46 (62.5) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68M42L 42 mm 2.52 (64) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68M43L 43 mm 2.56 (65) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68M45L 45 mm 2.66 (67.5) 2.13 (54) 1.18 (30) 3.94 (100) C RR10015S
S68M46L 46 mm 2.72 (69) 2.13 (54) 1.18 (30) 3.94 (100) C RR10015S
S68M48L 48 mm 2.81 (71.5) 2.13 (54) 1.18 (30) 3.94 (100) C RR10015S
S68M50L 50 mm 2.91 (74) 2.13 (54) 1.18 (30) 3.94 (100) C RR10015S
S68M52L 52 mm 3.01 (76.5) 2.13 (54) 1.18 (30) 3.94 (100) C RR10015S
S68M54L 54 mm 3.11 (79) 2.13 (54) 1.38 (35) 4.25 (108) C RR10015S
S68M55L 55 mm 3.15 (80) 2.13 (54) 1.38 (35) 4.25 (108) C RR10015S
S68M56L 56 mm 3.21 (81.5) 2.13 (54) 1.38 (35) 4.25 (108) C RR10015S
S68M58L 58 mm 3.31 (84) 2.13 (54) 1.38 (35) 4.25 (108) C RR10015S
S68M60L 60 mm 3.41 (86.5) 2.13 (54) 1.38 (35) 4.25 (108) C RR10015S
S68M65L 65 mm 3.64 (92.5) 2.13 (54) 1.38 (35) 4.72 (120) C RR10015S
S68M70L 70 mm 3.9 (99) 2.13 (54) 1.38 (35) 4.92 (125) C RR10015S
S68M75L 75 mm 4.13 (105) 2.37 (60.3) 1.38 (35) 4.92 (125) C RR10015S
S68M80L 80 mm 4.39 (111.5) 2.37 (60.3) 1.38 (35) 4.92 (125) C RR10015S
S68M85L 85 mm 4.53 (115) 3.39 (86) 1.38 (35) 5.31 (135) C RR10025S
S68M90L 90 mm 4.88 (124) 3.39 (86) 1.38 (35) 5.31 (135) C RR10025S
S68M95L 95 mm 5.12 (130) 3.39 (86) 1.38 (35) 5.51 (140) C RR10025S
