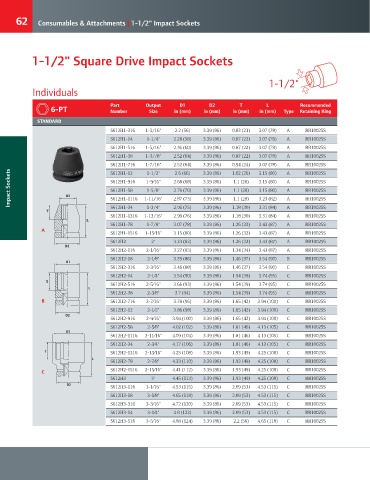

62 Consumables & Attachments | 1-1/2" Impact Sockets

1-1/2" Square Drive Impact Sockets

1-1/2"
Individuals

Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring

STANDARD
S612H1-316 1-3/16" 2.2 (56) 3.39 (86) 0.83 (21) 3.07 (78) A RR10025S
S612H1-14 1-1/4" 2.28 (58) 3.39 (86) 0.87 (22) 3.07 (78) A RR10025S
S612H1-516 1-5/16" 2.36 (60) 3.39 (86) 0.87 (22) 3.07 (78) A RR10025S
S612H1-38 1-3//8" 2.52 (64) 3.39 (86) 0.87 (22) 3.07 (78) A RR10025S
S612H1-716 1-7/16" 2.52 (64) 3.39 (86) 0.94 (24) 3.07 (78) A RR10025S
Impact Sockets D1 S612H1-916 1-11/16" 2.68 (68) 3.39 (86) 1.1 (28) 3.15 (80) A RR10025S
2.6 (66)
3.15 (80)
S612H1-12
RR10025S
1-1/2"
1.02 (26)
A
3.39 (86)
1-9⁄16"
1.1 (28)
3.39 (86)
2.76 (70)
S612H1-58
RR10025S
3.15 (80)
A
1-5/8"
3.23 (82)
1.1 (28)
3.39 (86)
S612H1-1116
RR10025S
A
2.87 (73)
T S612H1-34 1-3/4" 2.95 (75) 3.39 (86) 1.18 (30) 3.31 (84) A RR10025S
S612H1-1316 1-13/16" 2.99 (76) 3.39 (86) 1.18 (30) 3.31 (84) A RR10025S
L
S612H1-78 1-7/8" 3.07 (78) 3.39 (86) 1.26 (32) 3.43 (87) A RR10025S
A
S612H1-1516 1-15⁄16" 3.15 (80) 3.39 (86) 1.26 (32) 3.43 (87) A RR10025S
S612H2 2" 3.23 (82) 3.39 (86) 1.26 (32) 3.43 (87) A RR10025S
D2
S612H2-116 2-1⁄16" 3.27 (83) 3.39 (86) 1.34 (34) 3.43 (87) A RR10025S
S612H2-18 2-1⁄8" 3.39 (86) 3.39 (86) 1.46 (37) 3.54 (90) B RR10025S
D1
S612H2-316 2-3⁄16" 3.46 (88) 3.39 (86) 1.46 (37) 3.54 (90) C RR10025S
S612H2-14 2-1⁄4" 3.54 (90) 3.39 (86) 1.54 (39) 3.74 (95) C RR10025S
T
S612H2-516 2-5⁄16" 3.66 (93) 3.39 (86) 1.54 (39) 3.74 (95) C RR10025S
L
S612H2-38 2-3⁄8" 3.7 (94) 3.39 (86) 1.54 (39) 3.74 (95) C RR10025S
B S612H2-716 2-7⁄16" 3.78 (96) 3.39 (86) 1.65 (42) 3.94 (100) C RR10025S

S612H2-12 2-1⁄2" 3.86 (98) 3.39 (86) 1.65 (42) 3.94 (100) C RR10025S
D2
S612H2-916 2-9⁄16" 3.94 (100) 3.39 (86) 1.65 (42) 3.94 (100) C RR10025S
S612H2-58 2-5⁄8" 4.02 (102) 3.39 (86) 1.81 (46) 4.13 (105) C RR10025S
D1
S612H2-1116 2-11⁄16" 4.09 (104) 3.39 (86) 1.81 (46) 4.13 (105) C RR10025S
S612H2-34 2-3⁄4" 4.17 (106) 3.39 (86) 1.81 (46) 4.13 (105) C RR10025S
T S612H2-1316 2-13⁄16" 4.25 (108) 3.39 (86) 1.93 (49) 4.25 (108) C RR10025S
L
S612H2-78 2-7⁄8" 4.33 (110) 3.39 (86) 1.93 (49) 4.25 (108) C RR10025S
S612H2-1516 2-15⁄16" 4.41 (112) 3.39 (86) 1.93 (49) 4.25 (108) C RR10025S
C
S612H3 3" 4.45 (113) 3.39 (86) 1.93 (49) 4.25 (108) C RR10025S
D2
S612H3-116 3-1⁄16" 4.53 (115) 3.39 (86) 2.09 (53) 4.53 (115) C RR10025S
S612H3-18 3-1⁄8" 4.65 (118) 3.39 (86) 2.09 (53) 4.53 (115) C RR10025S
S612H3-316 3-3⁄16" 4.72 (120) 3.39 (86) 2.09 (53) 4.53 (115) C RR10025S
S612H3-14 3-1⁄4" 4.8 (122) 3.39 (86) 2.09 (53) 4.53 (115) C RR10025S
S612H3-516 3-5⁄16" 4.88 (124) 3.39 (86) 2.2 (56) 4.65 (118) C RR10025S
