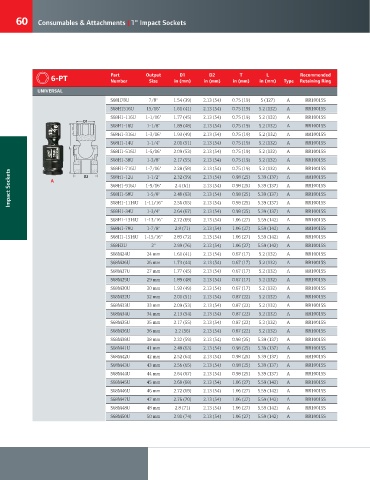

60 Consumables & Attachments | 1" Impact Sockets
Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring
UNIVERSAL
S68H78U 7/8" 1.54 (39) 2.13 (54) 0.75 (19) 5 (127) A RR10015S
S68H1516U 15/16" 1.61 (41) 2.13 (54) 0.75 (19) 5.2 (132) A RR10015S
S68H1-116U 1-1/16" 1.77 (45) 2.13 (54) 0.75 (19) 5.2 (132) A RR10015S
D1
S68H1-18U 1-1/8" 1.89 (48) 2.13 (54) 0.75 (19) 5.2 (132) A RR10015S
T
S68H1-316U 1-3/16" 1.93 (49) 2.13 (54) 0.75 (19) 5.2 (132) A RR10015S
S68H1-14U 1-1/4" 2.01 (51) 2.13 (54) 0.75 (19) 5.2 (132) A RR10015S
L
S68H1-516U 1-5/16" 2.09 (53) 2.13 (54) 0.75 (19) 5.2 (132) A RR10015S
S68H1-38U 1-3/8" 2.17 (55) 2.13 (54) 0.75 (19) 5.2 (132) A RR10015S
5.2 (132)
S68H1-716U 1-7/16" 2.28 (58) 2.13 (54) 0.75 (19) 5.39 (137) A RR10015S
Impact Sockets A S68H1-916U 1-9/16" 2.48 (63) 2.13 (54) 0.98 (25) 5.39 (137) A RR10015S
2.13 (54)
1-1/2"
RR10015S
A
2.32 (59)
D2
S68H1-12U
0.98 (25)
2.4 (61)
S68H1-58U
A
RR10015S
0.98 (25)
2.13 (54)
1-5/8"
5.39 (137)
S68H1-1116U
0.98 (25)
5.39 (137)
2.64 (67)
2.13 (54)
S68H1-34U 1-11/16" 2.56 (65) 2.13 (54) 0.98 (25) 5.39 (137) A RR10015S
A
RR10015S
1-3/4"
S68H1-1316U 1-13/16" 2.72 (69) 2.13 (54) 1.06 (27) 5.59 (142) A RR10015S
S68H1-78U 1-7/8" 2.8 (71) 2.13 (54) 1.06 (27) 5.59 (142) A RR10015S
S68H1-1516U 1-15/16" 2.83 (72) 2.13 (54) 1.06 (27) 5.59 (142) A RR10015S
S68H2U 2" 2.99 (76) 2.13 (54) 1.06 (27) 5.59 (142) A RR10015S
S68M24U 24 mm 1.61 (41) 2.13 (54) 0.67 (17) 5.2 (132) A RR10015S
S68M26U 26 mm 1.73 (44) 2.13 (54) 0.67 (17) 5.2 (132) A RR10015S
S68M27U 27 mm 1.77 (45) 2.13 (54) 0.67 (17) 5.2 (132) A RR10015S
S68M29U 29 mm 1.89 (48) 2.13 (54) 0.67 (17) 5.2 (132) A RR10015S
S68M30U 30 mm 1.93 (49) 2.13 (54) 0.67 (17) 5.2 (132) A RR10015S
S68M32U 32 mm 2.01 (51) 2.13 (54) 0.87 (22) 5.2 (132) A RR10015S
S68M33U 33 mm 2.09 (53) 2.13 (54) 0.87 (22) 5.2 (132) A RR10015S
S68M34U 34 mm 2.13 (54) 2.13 (54) 0.87 (22) 5.2 (132) A RR10015S
S68M35U 35 mm 2.17 (55) 2.13 (54) 0.87 (22) 5.2 (132) A RR10015S
S68M36U 36 mm 2.2 (56) 2.13 (54) 0.87 (22) 5.2 (132) A RR10015S
S68M38U 38 mm 2.32 (59) 2.13 (54) 0.98 (25) 5.39 (137) A RR10015S
S68M41U 41 mm 2.48 (63) 2.13 (54) 0.98 (25) 5.39 (137) A RR10015S
S68M42U 42 mm 2.52 (64) 2.13 (54) 0.98 (25) 5.39 (137) A RR10015S
S68M43U 43 mm 2.56 (65) 2.13 (54) 0.98 (25) 5.39 (137) A RR10015S
S68M44U 44 mm 2.64 (67) 2.13 (54) 0.98 (25) 5.39 (137) A RR10015S
S68M45U 45 mm 2.68 (68) 2.13 (54) 1.06 (27) 5.59 (142) A RR10015S
S68M46U 46 mm 2.72 (69) 2.13 (54) 1.06 (27) 5.59 (142) A RR10015S
S68M47U 47 mm 2.76 (70) 2.13 (54) 1.06 (27) 5.59 (142) A RR10015S
S68M48U 48 mm 2.8 (71) 2.13 (54) 1.06 (27) 5.59 (142) A RR10015S
S68M50U 50 mm 2.91 (74) 2.13 (54) 1.06 (27) 5.59 (142) A RR10015S
