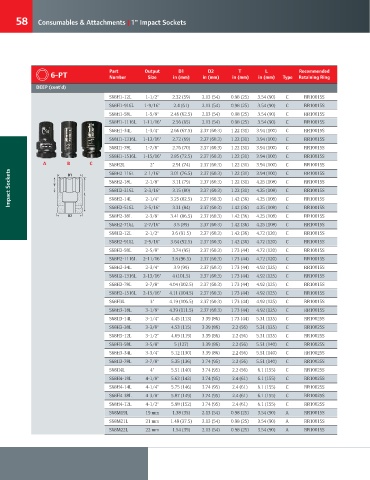

58 Consumables & Attachments | 1" Impact Sockets

Part Output D1 D2 T L Recommended
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type Retaining Ring

DEEP (cont'd)
S68H1-12L 1-1/2" 2.32 (59) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68H1-916L 1-9/16" 2.4 (61) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68H1-58L 1-5/8" 2.46 (62.5) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68H1-1116L 1-11/16" 2.56 (65) 2.13 (54) 0.98 (25) 3.54 (90) C RR10015S
S68H1-34L 1-3/4" 2.66 (67.5) 2.37 (60.3) 1.22 (31) 3.94 (100) C RR10015S
S68H1-1316L 1-13/16" 2.72 (69) 2.37 (60.3) 1.22 (31) 3.94 (100) C RR10015S
S68H1-78L 1-7/8" 2.76 (70) 2.37 (60.3) 1.22 (31) 3.94 (100) C RR10015S
S68H1-1516L 1-15/16" 2.85 (72.5) 2.37 (60.3) 1.22 (31) 3.94 (100) C RR10015S
A B C S68H2L 2-1/16" 3.01 (76.5) 2.37 (60.3) 1.22 (31) 3.94 (100) C RR10015S
2.91 (74)
2"
Impact Sockets T L S68H2-18L 2-3/16" 3.25 (82.5) 2.37 (60.3) 1.22 (31) 4.25 (108) C RR10015S
2.37 (60.3)
1.22 (31)
3.94 (100)
S68H2-116L
RR10015S
C
D1
3.11 (79)
2-1/8"
4.25 (108)
RR10015S
1.22 (31)
C
3.15 (80)
S68H2-316L
2.37 (60.3)
RR10015S
2-1/4"
2.37 (60.3)
S68H2-14L
4.25 (108)
C
1.42 (36)
3.31 (84)
2-3/8"
4.25 (108)
2.37 (60.3)
S68H2-38L
1.42 (36)
C
RR10015S
D2 S68H2-516L 2-5/16" 3.41 (86.5) 2.37 (60.3) 1.42 (36) 4.25 (108) C RR10015S
S68H2-716L 2-7/16" 3.5 (89) 2.37 (60.3) 1.42 (36) 4.25 (108) C RR10015S
S68H2-12L 2-1/2" 3.6 (91.5) 2.37 (60.3) 1.42 (36) 4.72 (120) C RR10015S
S68H2-916L 2-9/16" 3.64 (92.5) 2.37 (60.3) 1.42 (36) 4.72 (120) C RR10015S
S68H2-58L 2-5/8" 3.74 (95) 2.37 (60.3) 1.73 (44) 4.72 (120) C RR10015S
S68H2-1116L 2-11/16" 3.8 (96.5) 2.37 (60.3) 1.73 (44) 4.72 (120) C RR10015S
S68H2-34L 2-3/4" 3.9 (99) 2.37 (60.3) 1.73 (44) 4.92 (125) C RR10015S
S68H2-1316L 2-13/16" 4 (101.5) 2.37 (60.3) 1.73 (44) 4.92 (125) C RR10015S
S68H2-78L 2-7/8" 4.04 (102.5) 2.37 (60.3) 1.73 (44) 4.92 (125) C RR10015S
S68H2-1516L 2-15/16" 4.11 (104.5) 2.37 (60.3) 1.73 (44) 4.92 (125) C RR10015S
S68H3L 3" 4.19 (106.5) 2.37 (60.3) 1.73 (44) 4.92 (125) C RR10015S
S68H3-18L 3-1/8" 4.39 (111.5) 2.37 (60.3) 1.73 (44) 4.92 (125) C RR10015S
S68H3-14L 3-1/4" 4.45 (113) 3.39 (86) 1.73 (44) 5.31 (135) C RR10025S
S68H3-38L 3-3/8" 4.53 (115) 3.39 (86) 2.2 (56) 5.31 (135) C RR10025S
S68H3-12L 3-1/2" 4.69 (119) 3.39 (86) 2.2 (56) 5.31 (135) C RR10025S
S68H3-58L 3-5/8" 5 (127) 3.39 (86) 2.2 (56) 5.51 (140) C RR10025S
S68H3-34L 3-3/4" 5.12 (130) 3.39 (86) 2.2 (56) 5.51 (140) C RR10025S
S68H3-78L 3-7/8" 5.35 (136) 3.74 (95) 2.2 (56) 5.51 (140) C RR10025S
S68H4L 4" 5.51 (140) 3.74 (95) 2.2 (56) 6.1 (155) C RR10025S
S68H4-18L 4-1/8" 5.63 (143) 3.74 (95) 2.4 (61) 6.1 (155) C RR10025S
S68H4-14L 4-1/4" 5.75 (146) 3.74 (95) 2.4 (61) 6.1 (155) C RR10025S
S68H4-38L 4-3/8" 5.87 (149) 3.74 (95) 2.4 (61) 6.1 (155) C RR10025S
S68H4-12L 4-1/2" 5.98 (152) 3.74 (95) 2.4 (61) 6.1 (155) C RR10025S
S68M19L 19 mm 1.38 (35) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M21L 21 mm 1.48 (37.5) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
S68M22L 22 mm 1.54 (39) 2.13 (54) 0.98 (25) 3.54 (90) A RR10015S
