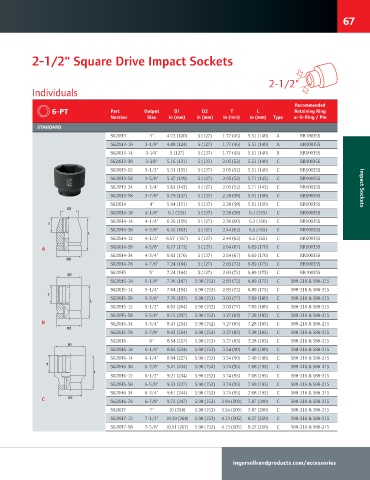

67

2-1/2" Square Drive Impact Sockets

2-1/2"
Individuals

Recommended
6-PT Part Output D1 D2 T L Retaining Ring
Number Size in (mm) in (mm) in (mm) in (mm) Type or O-Ring / Pin
STANDARD
S620H3 3" 4.72 (120) 5 (127) 1.77 (45) 5.51 (140) A RR10035S
S620H3-18 3-1/8" 4.88 (124) 5 (127) 1.77 (45) 5.51 (140) A RR10035S
S620H3-14 3-1⁄4" 5 (127) 5 (127) 1.77 (45) 5.51 (140) B RR10035S
S620H3-38 3-3⁄8" 5.16 (131) 5 (127) 2.05 (52) 5.51 (140) C RR10035S
S620H3-12 3-1/2" 5.31 (135) 5 (127) 2.05 (52) 5.51 (140) C RR10035S
S620H3-58 3-5/8" 5.47 (139) 5 (127) 2.05 (52) 5.71 (145) C RR10035S
S620H3-34 3-3/4" 5.63 (143) 5 (127) 2.05 (52) 5.71 (145) C RR10035S Impact Sockets
S620H3-78 3-7/8" 5.79 (147) 5 (127) 2.28 (58) 5.91 (150) C RR10035S
S620H4 4" 5.94 (151) 5 (127) 2.28 (58) 5.91 (150) C RR10035S
D1
S620H4-18 4-1/8" 6.1 (155) 5 (127) 2.28 (58) 6.1 (155) C RR10035S
S620H4-14 4-1/4" 6.26 (159) 5 (127) 2.36 (60) 6.3 (160) C RR10035S
T
S620H4-38 4-3/8" 6.42 (163) 5 (127) 2.44 (62) 6.5 (165) C RR10035S
L
S620H4-12 4-1/2" 6.57 (167) 5 (127) 2.44 (62) 6.5 (165) C RR10035S
S620H4-58 4-5/8" 6.77 (172) 5 (127) 2.64 (67) 6.69 (170) C RR10035S
A
S620H4-34 4-3/4" 6.93 (176) 5 (127) 2.64 (67) 6.69 (170) C RR10035S
D2
S620H4-78 4-7/8" 7.24 (184) 5 (127) 2.83 (72) 6.89 (175) C RR10035S
S620H5 5" 7.24 (184) 5 (127) 2.83 (72) 6.89 (175) C RR10035S
D1
S620H5-18 5-1/8" 7.36 (187) 5.98 (152) 2.83 (72) 6.89 (175) C 588-216 & 588-215
S620H5-14 5-1/4" 7.64 (194) 5.98 (152) 2.83 (72) 6.89 (175) C 588-216 & 588-215
T
S620H5-38 5-3/8" 7.76 (197) 5.98 (152) 3.03 (77) 7.09 (180) C 588-216 & 588-215
L
S620H5-12 5-1/2" 8.03 (204) 5.98 (152) 3.03 (77) 7.09 (180) C 588-216 & 588-215
S620H5-58 5-5/8" 8.15 (207) 5.98 (152) 3.27 (83) 7.28 (185) C 588-216 & 588-215
B S620H5-34 5-3/4" 8.43 (214) 5.98 (152) 3.27 (83) 7.28 (185) C 588-216 & 588-215
D2
S620H5-78 5-7/8" 8.43 (214) 5.98 (152) 3.27 (83) 7.28 (185) C 588-216 & 588-215
S620H6 6" 8.54 (217) 5.98 (152) 3.27 (83) 7.28 (185) C 588-216 & 588-215
D1
S620H6-18 6-1/8" 8.82 (224) 5.98 (152) 3.54 (90) 7.48 (190) C 588-216 & 588-215
S620H6-14 6-1/4" 8.94 (227) 5.98 (152) 3.54 (90) 7.48 (190) C 588-216 & 588-215
T
S620H6-38 6-3/8" 9.21 (234) 5.98 (152) 3.74 (95) 7.68 (195) C 588-216 & 588-215
L
S620H6-12 6-1/2" 9.21 (234) 5.98 (152) 3.74 (95) 7.68 (195) C 588-216 & 588-215
S620H6-58 6-5/8" 9.33 (237) 5.98 (152) 3.74 (95) 7.68 (195) C 588-216 & 588-215
S620H6-34 6-3/4" 9.61 (244) 5.98 (152) 3.74 (95) 7.68 (195) C 588-216 & 588-215
C D2
S620H6-78 6-7/8" 9.72 (247) 5.98 (152) 3.94 (100) 7.87 (200) C 588-216 & 588-215
S620H7 7" 10 (254) 5.98 (152) 3.94 (100) 7.87 (200) C 588-216 & 588-215
S620H7-12 7-1/2" 10.39 (264) 5.98 (152) 4.13 (105) 8.27 (210) C 588-216 & 588-215
S620H7-58 7-5/8" 10.51 (267) 5.98 (152) 4.13 (105) 8.27 (210) C 588-216 & 588-215
