69

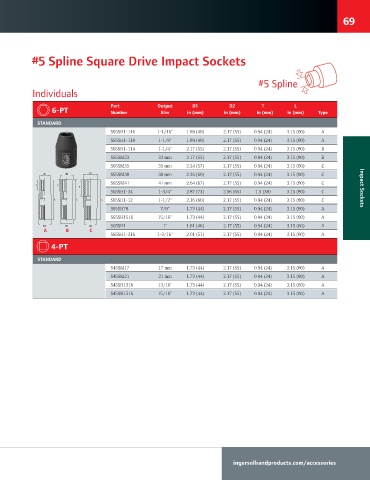

#5 Spline Square Drive Impact Sockets

#5 Spline
Individuals

Part Output D1 D2 T L
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type

STANDARD
S65SH1-116 1-1/16" 1.89 (48) 2.17 (55) 0.94 (24) 3.15 (80) A
S65SH1-118 1-1/8" 1.89 (48) 2.17 (55) 0.94 (24) 3.15 (80) A
S65SH1-114 1-1/4" 2.17 (55) 2.17 (55) 0.94 (24) 3.15 (80) B
S65SM33 33 mm 2.17 (55) 2.17 (55) 0.94 (24) 3.15 (80) B
S65SM35 35 mm 2.24 (57) 2.17 (55) 0.94 (24) 3.15 (80) C
D1 D1 D1 S65SM38 38 mm 2.36 (60) 2.17 (55) 0.94 (24) 3.15 (80) C
S65SM41 41 mm 2.64 (67) 2.17 (55) 0.94 (24) 3.15 (80) C
T T T Impact Sockets
S65SH1-34 1-3/4" 2.87 (73) 2.56 (65) 1.5 (38) 3.15 (80) C
L L L S65SH1-12 1-1/2" 2.36 (60) 2.17 (55) 0.94 (24) 3.15 (80) C
S65SH78 7/8" 1.73 (44) 2.17 (55) 0.94 (24) 3.15 (80) A
S65SH1516 15/16" 1.73 (44) 2.17 (55) 0.94 (24) 3.15 (80) A
D2 D2 D2 S65SH1 1" 1.81 (46) 2.17 (55) 0.94 (24) 3.15 (80) A
A B C
S65SH1-316 1-3/16" 2.01 (51) 2.17 (55) 0.94 (24) 3.15 (80) A

4-PT
STANDARD
S45SM17 17 mm 1.73 (44) 2.17 (55) 0.94 (24) 3.15 (80) A
S45SM21 21 mm 1.73 (44) 2.17 (55) 0.94 (24) 3.15 (80) A
S45SH1316 13/16" 1.73 (44) 2.17 (55) 0.94 (24) 3.15 (80) A
S45SH1516 15/16" 1.73 (44) 2.17 (55) 0.94 (24) 3.15 (80) A

ingersollrandproducts.com/accessories
