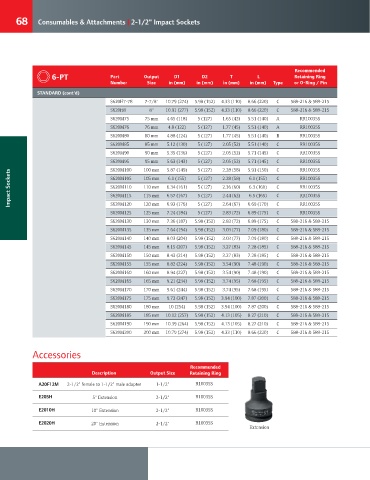

68 Consumables & Attachments | 2-1/2" Impact Sockets

Recommended
6-PT Part Output D1 D2 T L Retaining Ring
Number Size in (mm) in (mm) in (mm) in (mm) Type or O-Ring / Pin

STANDARD (cont'd)
S620H7-78 7-7/8" 10.79 (274) 5.98 (152) 4.33 (110) 8.66 (220) C 588-216 & 588-215
S620H8 8" 10.91 (277) 5.98 (152) 4.33 (110) 8.66 (220) C 588-216 & 588-215
S620M75 75 mm 4.65 (118) 5 (127) 1.65 (42) 5.51 (140) A RR10035S
S620M76 76 mm 4.8 (122) 5 (127) 1.77 (45) 5.51 (140) A RR10035S
S620M80 80 mm 4.88 (124) 5 (127) 1.77 (45) 5.51 (140) B RR10035S
S620M85 85 mm 5.12 (130) 5 (127) 2.05 (52) 5.51 (140) C RR10035S
S620M90 90 mm 5.35 (136) 5 (127) 2.05 (52) 5.71 (145) C RR10035S
S620M95 100 mm 5.63 (143) 5 (127) 2.05 (52) 5.71 (145) C RR10035S
95 mm
S620M100
2.28 (58)
5.87 (149)
5 (127)
5.91 (150)
C
RR10035S
Impact Sockets S620M105 105 mm 6.34 (161) 5 (127) 2.28 (58) 6.1 (155) C RR10035S
6.1 (155)
5 (127)
110 mm
C
6.3 (160)
S620M110
RR10035S
2.36 (60)
2.44 (62)
115 mm
6.5 (165)
RR10035S
S620M115
5 (127)
6.57 (167)
C
S620M120
7.24 (184)
5 (127)
125 mm
C
S620M125 120 mm 6.93 (176) 5 (127) 2.64 (67) 6.69 (170) C RR10035S
RR10035S
2.83 (72)
6.89 (175)
S620M130 130 mm 7.36 (187) 5.98 (152) 2.83 (72) 6.89 (175) C 588-216 & 588-215
S620M135 135 mm 7.64 (194) 5.98 (152) 3.03 (77) 7.09 (180) C 588-216 & 588-215
S620M140 140 mm 8.03 (204) 5.98 (152) 3.03 (77) 7.09 (180) C 588-216 & 588-215
S620M145 145 mm 8.15 (207) 5.98 (152) 3.27 (83) 7.28 (185) C 588-216 & 588-215
S620M150 150 mm 8.43 (214) 5.98 (152) 3.27 (83) 7.28 (185) C 588-216 & 588-215
S620M155 155 mm 8.82 (224) 5.98 (152) 3.54 (90) 7.48 (190) C 588-216 & 588-215
S620M160 160 mm 8.94 (227) 5.98 (152) 3.54 (90) 7.48 (190) C 588-216 & 588-215
S620M165 165 mm 9.21 (234) 5.98 (152) 3.74 (95) 7.68 (195) C 588-216 & 588-215
S620M170 170 mm 9.61 (244) 5.98 (152) 3.74 (95) 7.68 (195) C 588-216 & 588-215
S620M175 175 mm 9.72 (247) 5.98 (152) 3.94 (100) 7.87 (200) C 588-216 & 588-215
S620M180 180 mm 10 (254) 5.98 (152) 3.94 (100) 7.87 (200) C 588-216 & 588-215
S620M185 185 mm 10.12 (257) 5.98 (152) 4.13 (105) 8.27 (210) C 588-216 & 588-215
S620M190 190 mm 10.39 (264) 5.98 (152) 4.13 (105) 8.27 (210) C 588-216 & 588-215
S620M200 200 mm 10.79 (274) 5.98 (152) 4.33 (110) 8.66 (220) C 588-216 & 588-215

Accessories
Recommended
Description Output Size Retaining Ring
A20F12M 2-1/2" female to 1-1/2" male adapter 1-1/2" R10035S
E205H 5" Extension 2-1/2" R10035S
E2010H 10" Extension 2-1/2" R10035S
E2020H 20" Extension 2-1/2" R10035S
Extension
