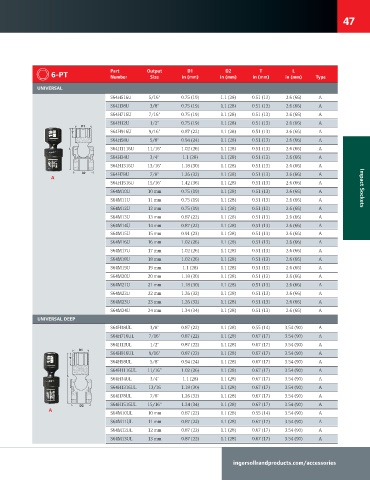

Page 47 - 英格索兰附件图册IngersollRand
P. 47
47
Part Output D1 D2 T L
6-PT Number Size in (mm) in (mm) in (mm) in (mm) Type
UNIVERSAL
S64H516U 5/16" 0.75 (19) 1.1 (28) 0.51 (13) 2.6 (66) A
S64H38U 3/8" 0.75 (19) 1.1 (28) 0.51 (13) 2.6 (66) A
S64H716U 7/16" 0.75 (19) 1.1 (28) 0.51 (13) 2.6 (66) A
S64H12U 1/2" 0.75 (19) 1.1 (28) 0.51 (13) 2.6 (66) A
D1
T S64H916U 9/16" 0.87 (22) 1.1 (28) 0.51 (13) 2.6 (66) A
S64H58U 5/8" 0.94 (24) 1.1 (28) 0.51 (13) 2.6 (66) A
L S64H1116U 11/16" 1.02 (26) 1.1 (28) 0.51 (13) 2.6 (66) A
S64H34U 3/4" 1.1 (28) 1.1 (28) 0.51 (13) 2.6 (66) A
S64H1316U 13/16" 1.18 (30) 1.1 (28) 0.51 (13) 2.6 (66) A
D2 S64H78U 7/8" 1.26 (32) 1.1 (28) 0.51 (13) 2.6 (66) A
A
S64H1516U 15/16" 1.42 (36) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M10U 10 mm 0.75 (19) 1.1 (28) 0.51 (13) 2.6 (66) A Impact Sockets
S64M11U 11 mm 0.75 (19) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M12U 12 mm 0.75 (19) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M13U 13 mm 0.87 (22) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M14U 14 mm 0.87 (22) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M15U 15 mm 0.91 (23) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M16U 16 mm 1.02 (26) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M17U 17 mm 1.02 (26) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M18U 18 mm 1.02 (26) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M19U 19 mm 1.1 (28) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M20U 20 mm 1.18 (30) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M21U 21 mm 1.18 (30) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M22U 22 mm 1.26 (32) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M23U 23 mm 1.26 (32) 1.1 (28) 0.51 (13) 2.6 (66) A
S64M24U 24 mm 1.34 (34) 1.1 (28) 0.51 (13) 2.6 (66) A
UNIVERSAL DEEP
S64H38UL 3/8" 0.87 (22) 1.1 (28) 0.55 (14) 3.54 (90) A
S64H716UL 7/16" 0.87 (22) 1.1 (28) 0.67 (17) 3.54 (90) A
S64H12UL 1/2" 0.87 (22) 1.1 (28) 0.67 (17) 3.54 (90) A
D1
S64H916UL 9/16" 0.87 (22) 1.1 (28) 0.67 (17) 3.54 (90) A
T
S64H58UL 5/8" 0.94 (24) 1.1 (28) 0.67 (17) 3.54 (90) A
S64H1116UL 11/16" 1.02 (26) 1.1 (28) 0.67 (17) 3.54 (90) A
L
S64H34UL 3/4" 1.1 (28) 1.1 (28) 0.67 (17) 3.54 (90) A
S64H1316UL 13/16 1.18 (30) 1.1 (28) 0.67 (17) 3.54 (90) A
S64H78UL 7/8" 1.26 (32) 1.1 (28) 0.67 (17) 3.54 (90) A
D2 S64H1516UL 15/16" 1.34 (34) 1.1 (28) 0.67 (17) 3.54 (90) A
A
S64M10UL 10 mm 0.87 (22) 1.1 (28) 0.55 (14) 3.54 (90) A
S64M11UL 11 mm 0.87 (22) 1.1 (28) 0.67 (17) 3.54 (90) A
S64M12UL 12 mm 0.87 (22) 1.1 (28) 0.67 (17) 3.54 (90) A
S64M13UL 13 mm 0.87 (22) 1.1 (28) 0.67 (17) 3.54 (90) A
