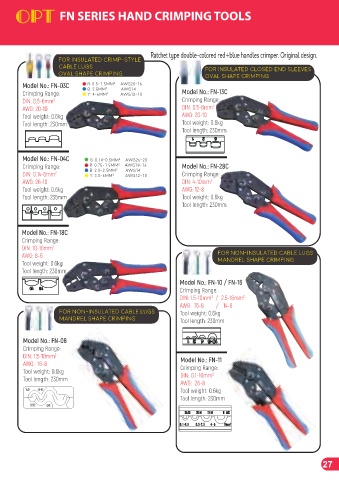

FN SERIES HAND CRIMPING TOOLS

Ratchet type double-colored red+blue handles crimper. Original design.
For insulated crimp-style
cable lugs For insulated closed end sleeves
Oval shape crimping Oval shape crimping
Model No.: FN-03C R: 0.5-1.5mm AWG20-16
2
B: 2.5mm AWG14
2
Crimping Range: Y: 4-6mm AWG12-10 Model No.: FN-13C
2
2
DIN: 0.5-6mm Crimping Range:
2
AWG: 20-10 DIN: 0.5-6mm
Tool weight: 0.6kg AWG: 20-10
Tool length: 230mm Tool weight: 0.6kg
Tool length: 230mm

Model No.: FN-04C G: 0.14-0.5mm AWG26-20
2
Crimping Range: R: 0.75-1.5mm AWG18-16 Model No.: FN-28C
2
2
2
DIN: 0.14-6mm B: 2.0-2.5mm AWG14 Crimping Range:
2
Y: 3.5-6mm AWG12-10
AWG: 26-10 DIN: 4-10mm
2
Tool weight: 0.6kg AWG: 12-8
Tool length: 235mm Tool weight: 0.6kg
Tool length: 230mm

Model No.: FN-18C
Crimping Range:
DIN: 10-16mm
2
AWG: 8-6 For non-insulated cable lugs
Mandrel shape crimping
Tool weight: 0.6kg
Tool length: 230mm
Model No.: FN-10 / FN-16
Crimping Range:
DIN: 1.5-10mm / 2.5-16mm 2
2
AWG: 16-8 / 14-6
For non-insulated cable lugs Tool weight: 0.6kg
Mandrel shape crimping Tool length: 230mm

Model No.: FN-08
Crimping Range:
DIN: 1.5-10mm 2 Model No.: FN-11
AWG: 16-8
Tool weight: 0.6kg Crimping Range:
2
DIN: 0.1-10mm
Tool length: 230mm
AWG: 26-8
Tool weight: 0.6kg
Tool length: 230mm
