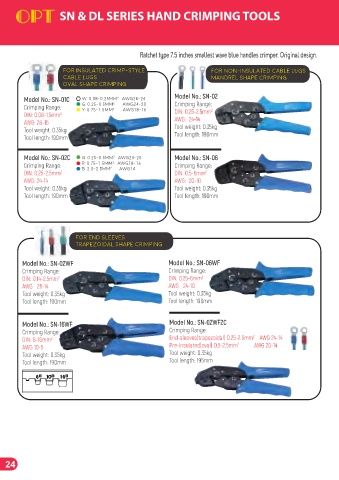

SN & DL SERIES HAND CRIMPING TOOLS

Ratchet type 7.5 inches smallest wave blue handles crimper. Original design.

For insulated crimp-style For non-insulated cable lugs
cable lugs Mandrel shape crimping
Oval shape crimping

Model No.: SN-01C W: 0.08-0.25mm AWG28-24 Model No.: SN-02
2
2
Crimping Range: G: 0.25-0.5mm AWG24-20 Crimping Range: 2
Y: 0.75-1.5mm AWG18-16
2
DIN: 0.08-1.5mm DIN: 0.25-2.5mm
2
AWG: 28-16 AWG: 24-14
Tool weight: 0.35kg Tool weight: 0.35kg
Tool length: 190mm Tool length: 190mm

Model No.: SN-02C G: 0.25-0.5mm AWG24-20 Model No.: SN-06
2
2
Crimping Range: R: 0.75-1.5mm AWG18-16 Crimping Range:
2
DIN: 0.25-2.5mm B: 2.0-2.5mm AWG14 DIN: 0.5-6mm 2
2
AWG: 24-14 AWG: 20-10
Tool weight: 0.35kg Tool weight: 0.35kg
Tool length: 190mm Tool length: 190mm

For end sleeves
Trapezoidal shape crimping

Model No.: SN-02WF Model No.: SN-06WF
Crimping Range: Crimping Range:
DIN: 0.14-2.5mm DIN: 0.25-6mm 2
2
AWG 26-14 AWG 24-10
Tool weight: 0.35kg Tool weight: 0.35kg
Tool length: 190mm Tool length: 190mm

Model No.: SN-16WF Model No.: SN-02WF2C
Crimping Range: Crimping Range:
2
DIN: 6-16mm 2 End-sleeves(trapezoidal) 0.25-2.5mm AWG 24-14
AWG 10-5 Pre-insulated(oval) 0.5-2.5mm 2 AWG 20-14
Tool weight: 0.35kg Tool weight: 0.35kg
Tool length: 190mm Tool length: 195mm

24
