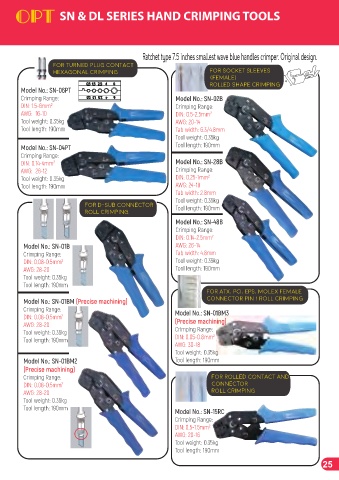

SN & DL SERIES HAND CRIMPING TOOLS

Ratchet type 7.5 inches smallest wave blue handles crimper. Original design.

For turned plug contact
Hexagonal crimping For socket sleeves
(female)
ROLLED shape crimping
Model No.: SN-06PT
Crimping Range: Model No.: SN-02B
DIN: 1.5-6mm Crimping Range:
2
AWG: 16-10 DIN: 0.5-2.5mm
2
Tool weight: 0.35kg AWG: 20-14
Tool length: 190mm Tab width: 6.3/4.8mm
Tool weight: 0.35kg
Model No.: SN-04PT Tool length: 190mm
Crimping Range:
DIN: 0.14-4mm Model No.: SN-28B
2
AWG: 26-12 Crimping Range:
2
Tool weight: 0.35kg DIN: 0.25-1mm
Tool length: 190mm AWG: 24-18
Tab width: 2.8mm
Tool weight: 0.35kg
For D-Sub connector Tool length: 190mm
Roll crimping
Model No.: SN-48B
Crimping Range:
2
DIN: 0.14-2.5mm
Model No.: SN-01B AWG: 26-14
Crimping Range: Tab width: 4.8mm
2
DIN: 0.08-0.5mm Tool weight: 0.35kg
AWG: 28-20 Tool length: 190mm
Tool weight: 0.35kg
Tool length: 190mm
For ATX, PCI, EPS, Molex female
Model No.: SN-01BM (Precise machining) connector pin / Roll crimping
Crimping Range: Model No.: SN-01BM3
DIN: 0.08-0.5mm
2
AWG: 28-20 (Precise machining)
Tool weight: 0.35kg Crimping Range:
2
Tool length: 190mm DIN: 0.05-0.8mm
AWG: 30-18
Tool weight: 0.35kg
Model No.: SN-01BM2 Tool length: 190mm
(Precise machining)
Crimping Range: For rolled contact and
DIN: 0.08-0.5mm connector
2
AWG: 28-20 Roll crimping
Tool weight: 0.35kg
Tool length: 190mm Model No.: SN-15RC
Crimping Range:
DIN: 0.5-1.5mm
2
AWG: 20-16
Tool weight: 0.35kg
Tool length: 190mm
