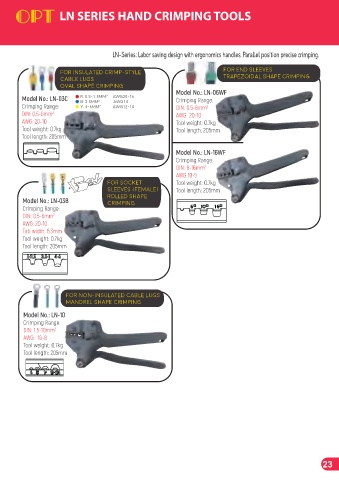

LN SERIES HAND CRIMPING TOOLS

LN-Series: Labor saving design with ergonomics handles. Parallel position precise crimping.

For end sleeves
For insulated crimp-style
cable lugs Trapezoidal shape crimping
Oval shape crimping
Model No.: LN-06WF
2
Model No.: LN-03C R: 0.5-1.5mm AWG20-16 Crimping Range:
B: 2.5mm AWG14
2
Crimping Range: Y: 4-6mm AWG12-10 DIN: 0.5-6mm 2
2
DIN: 0.5-6mm AWG 20-10
2
AWG: 20-10 Tool weight: 0.7kg
Tool weight: 0.7kg Tool length: 205mm
Tool length: 205mm
Model No.: LN-16WF
Crimping Range:
DIN: 6-16mm 2
AWG 10-5
For socket Tool weight: 0.7kg
sleeves (female) Tool length: 205mm
ROLLED shape
Model No.: LN-03B crimping
Crimping Range:
DIN: 0.5-6mm
2
AWG: 20-10
Tab width: 6.3mm
Tool weight: 0.7kg
Tool length: 205mm

For non-insulated cable lugs
Mandrel shape crimping
Model No.: LN-10
Crimping Range:
DIN: 1.5-10mm 2
AWG: 16-8
Tool weight: 0.7kg
Tool length: 205mm

23
