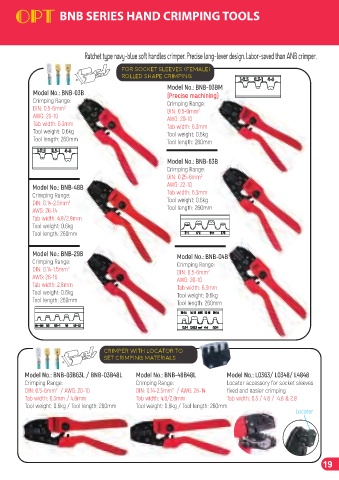

BNB SERIES HAND CRIMPING TOOLS

Ratchet type navy-blue soft handles crimper. Precise long-lever design. Labor-saved than ANB crimper.

For socket sleeves (female)
ROLLED shape crimping
Model No.: BNB-03BM
Model No.: BNB-03B (Precise machining)
Crimping Range: Crimping Range:
DIN: 0.5-6mm DIN: 0.5-6mm
2
2
AWG: 20-10 AWG: 20-10
Tab width: 6.3mm Tab width: 6.3mm
Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 260mm Tool length: 260mm

Model No.: BNB-63B
Crimping Range:
2
DIN: 0.25-6mm
Model No.: BNB-48B AWG: 22-10
Crimping Range: Tab width: 6.3mm
DIN: 0.14-2.5mm Tool weight: 0.6kg
2
AWG: 26-14 Tool length: 260mm
Tab width: 4.8/2.8mm
Tool weight: 0.6kg
Tool length: 260mm

Model No.: BNB-29B Model No.: BNB-04B
Crimping Range: Crimping Range:
2
DIN: 0.14-1.5mm DIN: 0.5-6mm
2
AWG: 26-16 AWG: 20-10
Tab width: 2.8mm Tab width: 6.3mm
Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 260mm Tool length: 260mm

crimper with locator to
set crimping materials

Model No.: BNB-03B63L / BNB-03B48L Model No.: BNB-48B48L Model No.: L0363/ L0348/ L4848
Crimping Range: Crimping Range: Locator accessory for socket sleeves
DIN: 0.5-6mm / AWG: 20-10 DIN: 0.14-2.5mm / AWG: 26-14 fixed and easier crimping
2
2
Tab width: 6.3mm / 4.8mm Tab width: 4.8/2.8mm Tab width: 6.3 / 4.8 / 4.8 & 2.8
Tool weight: 0.6kg / Tool length: 260mm Tool weight: 0.6kg / Tool length: 260mm
Locator

19
