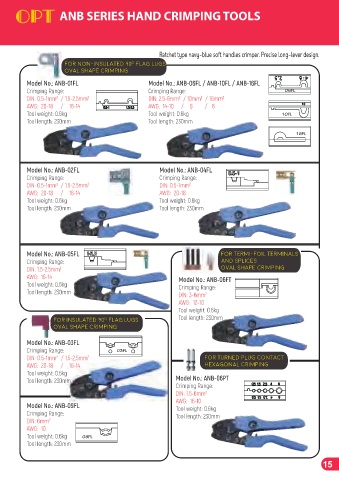

ANB SERIES HAND CRIMPING TOOLS

Ratchet type navy-blue soft handles crimper. Precise long-lever design.
For non-insulated 90 flag lugs
o
Oval shape crimping
Model No.: ANB-01FL Model No.: ANB-06FL / ANB-10FL / ANB-16FL
Crimping Range: Crimping Range: 06FL
DIN: 0.5-1mm / 1.5-2.5mm DIN: 2.5-6mm / 10mm / 16mm
2
2
2
2
2
AWG: 20-18 / 16-14 AWG: 14-10 / 8 / 6
Tool weight: 0.6kg Tool weight: 0.6kg 10FL
Tool length: 230mm Tool length: 230mm
16FL

Model No.: ANB-02FL Model No.: ANB-04FL
Crimping Range: Crimping Range:
DIN: 0.5-1mm / 1.5-2.5mm DIN: 0.5-1mm
2
2
2
AWG: 20-18 / 16-14 AWG: 20-18
Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 230mm Tool length: 230mm

Model No.: ANB-05FL For termi-foil terminals
Crimping Range: and splices
DIN: 1.5-2.5mm Oval shape crimping
2
AWG: 16-14 Model No.: ANB-06FT
Tool weight: 0.6kg Crimping Range:
Tool length: 230mm DIN: 3-6mm
2
AWG: 12-10
Tool weight: 0.6kg

For insulated 90 flag lugs Tool length: 230mm
o
Oval shape crimping
Model No.: ANB-03FL
Crimping Range: 03FL
DIN: 0.5-1mm / 1.5-2.5mm For turned plug contact
2
2
AWG: 20-18 / 16-14 Hexagonal crimping
Tool weight: 0.6kg
Tool length: 230mm Model No.: ANB-06PT
Crimping Range:
DIN: 1.5-6mm
2
AWG: 16-10
Model No.: ANB-09FL Tool weight: 0.6kg
Crimping Range: Tool length: 230mm
2
DIN: 6mm
AWG: 10
Tool weight: 0.6kg 09FL
Tool length: 230mm
