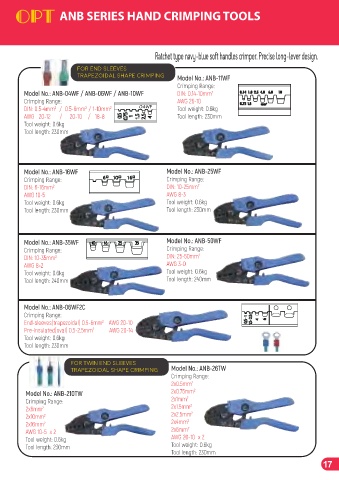

ANB SERIES HAND CRIMPING TOOLS

Ratchet type navy-blue soft handles crimper. Precise long-lever design.

For end sleeves
Trapezoidal shape crimping Model No.: ANB-11WF
Crimping Range:
Model No.: ANB-04WF / ANB-06WF / ANB-10WF DIN: 0.14-10mm 2
Crimping Range: AWG 26-10
DIN: 0.5-4mm / 0.5-6mm / 1-10mm 2 04WF Tool weight: 0.6kg
2
2
AWG 20-12 / 20-10 / 18-8 Tool length: 230mm
Tool weight: 0.6kg
Tool length: 230mm

Model No.: ANB-16WF Model No.: ANB-25WF
Crimping Range: Crimping Range:
DIN: 6-16mm 2 DIN: 10-25mm 2
AWG 10-5 AWG 8-3
Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 230mm Tool length: 230mm

Model No.: ANB-35WF Model No.: ANB-50WF
Crimping Range: Crimping Range:
DIN: 10-35mm DIN: 25-50mm 2
2
AWG 8-2 AWG 3-0
Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 240mm Tool length: 240mm

Model No.: ANB-06WF2C
Crimping Range:
End-sleeves(trapezoidal) 0.5-6mm AWG 20-10
2
Pre-insulated(oval) 0.5-2.5mm 2 AWG 20-14
Tool weight: 0.6kg
Tool length: 230mm

For TWIN end sleeves
Trapezoidal shape crimping Model No.: ANB-26TW
Crimping Range:
2x0.5mm 2
Model No.: ANB-210TW 2x0.75mm 2
Crimping Range: 2x1mm 2
2x6mm 2 2x1.5mm 2
2x10mm 2 2x2.5mm 2
2x16mm 2 2x4mm 2
AWG 10-5 x 2 2x6mm 2
Tool weight: 0.6kg AWG 20-10 x 2
Tool length: 230mm Tool weight: 0.6kg
Tool length: 230mm
17
