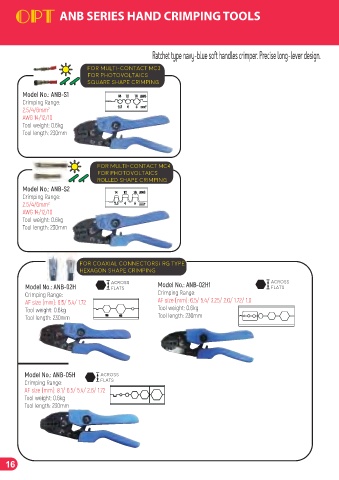

ANB SERIES HAND CRIMPING TOOLS

Ratchet type navy-blue soft handles crimper. Precise long-lever design.

For multi-contact MC3
for photovoltaics
Square shape crimping

Model No.: ANB-S1
Crimping Range:
2.5/4/6mm 2
AWG 14/12/10
Tool weight: 0.6kg
Tool length: 230mm

For multi-contact MC4
for photovoltaics
ROLLED shape crimping
Model No.: ANB-S2
Crimping Range:
2.5/4/6mm 2
AWG 14/12/10
Tool weight: 0.6kg
Tool length: 230mm

For coaxial connectors/ RG type
HEXAGON shape crimping
across Model No.: ANB-02H1 across
Model No.: ANB-02H flats flats
Crimping Range: Crimping Range:
AF size (mm): 6.5/ 5.4/ 1.72 AF size (mm): 6.5/ 5.4/ 3.25/ 2.0/ 1.72/ 1.0
Tool weight: 0.6kg Tool weight: 0.6kg
Tool length: 230mm Tool length: 230mm

Model No.: ANB-05H across
Crimping Range: flats
AF size (mm): 8.1/ 6.5/ 5.4/ 2.6/ 1.72
Tool weight: 0.6kg
Tool length: 230mm

16
