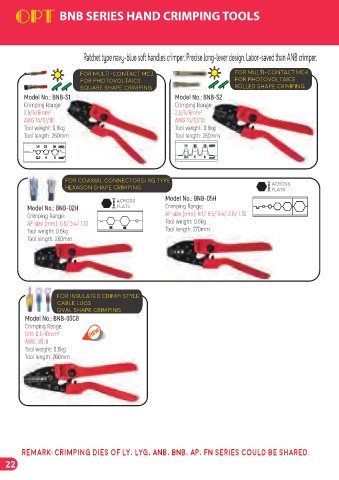

BNB SERIES HAND CRIMPING TOOLS







                              Ratchet type navy-blue soft handles crimper. Precise long-lever design. Labor-saved than ANB crimper.



                             For multi-contact MC3                                  For multi-contact MC4
                             for photovoltaics                                      for photovoltaics
                             Square shape crimping                                  ROLLED shape crimping
         Model No.: BNB-S1                                    Model No.: BNB-S2
         Crimping Range:                                      Crimping Range:
         2.5/4/6mm 2                                          2.5/4/6mm 2
         AWG 14/12/10                                         AWG 14/12/10
         Tool weight: 0.6kg                                   Tool weight: 0.6kg
         Tool length: 260mm                                   Tool length: 260mm








                        For coaxial connectors/ RG type
                        HEXAGON shape crimping                                                  across
                                                                                                flats
                                                           Model No.: BNB-05H
                                          across
           Model No.: BNB-02H             flats            Crimping Range:
           Crimping Range:                                 AF size (mm): 8.1/ 6.5/ 5.4/ 2.6/ 1.72
           AF size (mm): 6.5/ 5.4/ 1.72                    Tool weight: 0.6kg
           Tool weight: 0.6kg                              Tool length: 270mm
           Tool length: 260mm










                     For insulated crimp-style
                     cable lugs
                     Oval shape crimping
          Model No.: BNB-03C8
          Crimping Range:
          DIN: 0.5-10mm
                     2
          AWG: 20-8
          Tool weight: 0.6kg
          Tool length: 260mm



















         Remark: Crimping dies of LY, LYG, ANB, BNB, AP, FN series could be shared.
