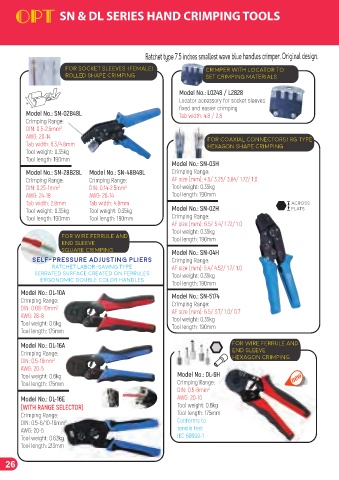

SN & DL SERIES HAND CRIMPING TOOLS

Ratchet type 7.5 inches smallest wave blue handles crimper. Original design.

For socket sleeves (female) crimper with locator to
ROLLED shape crimping set crimping materials

Model No.: L0248 / L2828
Locator accessory for socket sleeves
fixed and easier crimping
Model No.: SN-02B48L Tab width: 4.8 / 2.8
Crimping Range:
DIN: 0.5-2.5mm
2
AWG: 20-14 For coaxial connectors/ RG type
Tab width: 6.3/4.8mm HEXAGON shape crimping
Tool weight: 0.35kg
Tool length: 190mm
Model No.: SN-03H
Model No.: SN-28B28L Model No.: SN-48B48L Crimping Range:
Crimping Range: Crimping Range: AF size (mm): 4.5/ 3.25/ 3.84/ 1.72/ 1.0
2
2
DIN: 0.25-1mm DIN: 0.14-2.5mm Tool weight: 0.35kg
AWG: 24-18 AWG: 26-14 Tool length: 190mm
Tab width: 2.8mm Tab width: 4.8mm across
Tool weight: 0.35kg Tool weight: 0.35kg Model No.: SN-02H flats
Tool length: 190mm Tool length: 190mm Crimping Range:
AF size (mm): 6.5/ 5.4/ 1.72/ 1.0
Tool weight: 0.35kg
For wire ferrule and Tool length: 190mm
end sleeve
Square crimping Model No.: SN-04H
Self-pressure adjusting pliers Crimping Range:
Ratchet labor-saving type AF size (mm): 5.4/ 4.52/ 1.7/ 1.0
Serrated surface created on ferrules Tool weight: 0.35kg
Ergonomic double color handles
Tool length: 190mm
Model No.: DL-10A Model No.: SN-5174
Crimping Range: Crimping Range:
2
DIN: 0.08-10mm AF size (mm): 6.5/ 3.7/ 1.0/ 0.7
AWG: 28-8 Tool weight: 0.35kg
Tool weight: 0.6kg Tool length: 190mm
Tool length: 175mm

Model No.: DL-16A For wire ferrule and
Crimping Range: end sleeve
hexagon crimping
DIN: 0.5-16mm
2
AWG: 20-5
Tool weight: 0.6kg Model No.: DL-6H
Tool length: 175mm Crimping Range:
DIN: 0.5-6mm
2
Model No.: DL-16E AWG: 20-10
(WITH RANGE SELECTOR) Tool weight: 0.6kg
Crimping Range: Tool length: 175mm
2
DIN: 0.5-6/10-16mm Conforms to
AWG: 20-5 tensile test
Tool weight: 0.62kg IEC 60999-1
Tool length: 213mm
