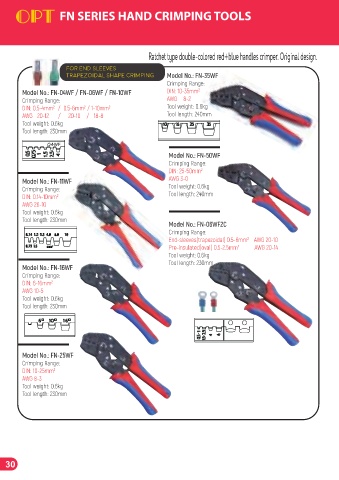

FN SERIES HAND CRIMPING TOOLS

Ratchet type double-colored red+blue handles crimper. Original design.

For end sleeves
Trapezoidal shape crimping Model No.: FN-35WF
Crimping Range:
2
Model No.: FN-04WF / FN-06WF / FN-10WF DIN: 10-35mm
Crimping Range: AWG 8-2
DIN: 0.5-4mm / 0.5-6mm / 1-10mm 2 Tool weight: 0.6kg
2
2
AWG 20-12 / 20-10 / 18-8 Tool length: 240mm
Tool weight: 0.6kg
Tool length: 230mm

04WF
Model No.: FN-50WF
Crimping Range:
DIN: 25-50mm 2
Model No.: FN-11WF AWG 3-0
Crimping Range: Tool weight: 0.6kg
DIN: 0.14-10mm 2 Tool length: 240mm
AWG 26-10
Tool weight: 0.6kg
Tool length: 230mm
Model No.: FN-06WF2C
Crimping Range:
End-sleeves(trapezoidal) 0.5-6mm AWG 20-10
2
Pre-insulated(oval) 0.5-2.5mm 2 AWG 20-14
Tool weight: 0.6kg
Tool length: 230mm
Model No.: FN-16WF
Crimping Range:
DIN: 6-16mm 2
AWG 10-5
Tool weight: 0.6kg
Tool length: 230mm

Model No.: FN-25WF
Crimping Range:
DIN: 10-25mm 2
AWG 8-3
Tool weight: 0.6kg
Tool length: 230mm

30
