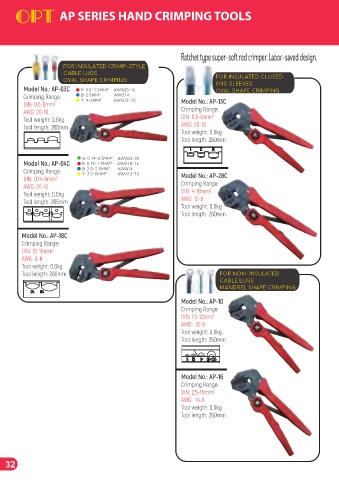

AP SERIES HAND CRIMPING TOOLS

Ratchet type super-soft red crimper. Labor-saved design.

For insulated crimp-style
cable lugs For insulated closed
Oval shape crimping end sleeves
Model No.: AP-03C R: 0.5-1.5mm AWG20-16 Oval shape crimping
2
2
Crimping Range: B: 2.5mm AWG14
Y: 4-6mm AWG12-10
2
DIN: 0.5-6mm Model No.: AP-13C
2
AWG: 20-10 Crimping Range:
2
Tool weight: 0.6kg DIN: 0.5-6mm
Tool length: 260mm AWG: 20-10
Tool weight: 0.6kg
Tool length: 260mm
G: 0.14-0.5mm AWG26-20
2
Model No.: AP-04C R: 0.75-1.5mm AWG18-16
2
2
Crimping Range: B: 2.0-2.5mm AWG14
Y: 3.5-6mm AWG12-10
2
DIN: 0.14-6mm Model No.: AP-28C
2
AWG: 26-10 Crimping Range:
2
Tool weight: 0.6kg DIN: 4-10mm
Tool length: 265mm AWG: 12-8
Tool weight: 0.6kg
Tool length: 260mm
Model No.: AP-18C
Crimping Range:
2
DIN: 10-16mm
AWG: 8-6
Tool weight: 0.6kg
Tool length: 260mm For non-insulated
cable lugs
Mandrel shape crimping

Model No.: AP-10
Crimping Range:
DIN: 1.5-10mm 2
AWG: 16-8
Tool weight: 0.6kg
Tool length: 260mm

Model No.: AP-16
Crimping Range:
DIN: 2.5-16mm 2
AWG: 14-6
Tool weight: 0.6kg
Tool length: 260mm

32
