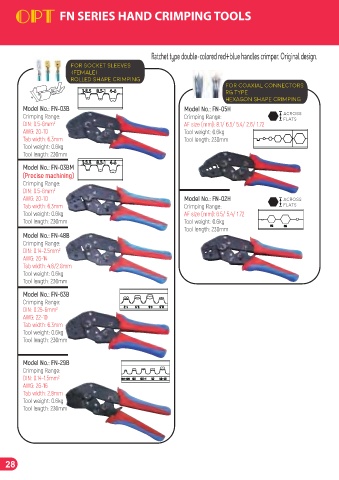

FN SERIES HAND CRIMPING TOOLS

Ratchet type double-colored red+blue handles crimper. Original design.

For socket sleeves
(female)
ROLLED shape crimping
For coaxial connectors
RG type
HEXAGON shape crimping
Model No.: FN-03B Model No.: FN-05H
Crimping Range: Crimping Range: across
flats
DIN: 0.5-6mm AF size (mm): 8.1/ 6.5/ 5.4/ 2.6/ 1.72
2
AWG: 20-10 Tool weight: 0.6kg
Tab width: 6.3mm Tool length: 230mm
Tool weight: 0.6kg
Tool length: 230mm

Model No.: FN-03BM
(Precise machining)
Crimping Range:
DIN: 0.5-6mm
2
AWG: 20-10 Model No.: FN-02H across
Tab width: 6.3mm Crimping Range: flats
Tool weight: 0.6kg AF size (mm): 6.5/ 5.4/ 1.72
Tool length: 230mm Tool weight: 0.6kg
Tool length: 230mm
Model No.: FN-48B
Crimping Range:
DIN: 0.14-2.5mm
2
AWG: 26-14
Tab width: 4.8/2.8mm
Tool weight: 0.6kg
Tool length: 230mm

Model No.: FN-63B
Crimping Range:
DIN: 0.25-6mm
2
AWG: 22-10
Tab width: 6.3mm
Tool weight: 0.6kg
Tool length: 230mm

Model No.: FN-29B
Crimping Range:
DIN: 0.14-1.5mm
2
AWG: 26-16
Tab width: 2.8mm
Tool weight: 0.6kg
Tool length: 230mm

28
