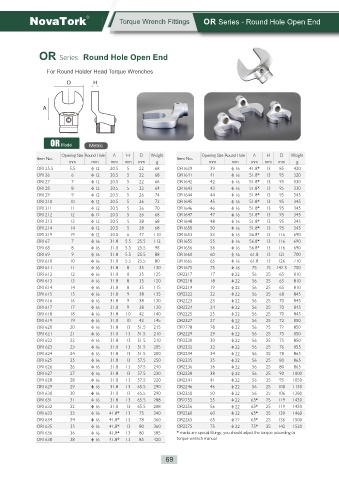

Page 74 - 2024诺特扭力英文NovaTork-Torque
P. 74
Torque Wrench Fittings OR Series - Round Hole Open End
OR Series Round Hole Open End
NovaTork
For Round Holder Head Torque Wrenches
D H
A
OR Model Nfusjd
Opening Size Round Hole A H D Weight Opening Size Round Hole A H D Weight
Item No. Item No.
mm mm mm mm mm g mm mm mm mm mm g
OR125.5 5.5 φ12 20.5 5 22 68 OR1639 39 φ16 41.8* 13 85 420
OR126 6 φ12 20.5 5 22 68 OR1641 41 φ16 51.8* 13 95 320
OR127 7 φ12 20.5 5 22 66 OR1642 42 φ16 51.8* 13 95 330
OR128 8 φ12 20.5 5 22 64 OR1643 43 φ16 51.8* 13 95 330
OR129 9 φ12 20.5 5 26 74 OR1644 44 φ16 51.8* 13 95 345
OR1210 10 φ12 20.5 5 26 72 OR1645 45 φ16 51.8* 13 95 345
OR1211 11 φ12 20.5 5 26 70 OR1646 46 φ16 51.8* 13 95 345
OR1212 12 φ12 20.5 5 26 68 OR1647 47 φ16 51.8* 13 95 345
OR1213 13 φ12 20.5 5 28 68 OR1648 48 φ16 51.8* 13 95 345
OR1214 14 φ12 20.5 5 28 68 OR1650 50 φ16 51.8* 13 95 345
OR1219 19 φ12 30.5 6 47 110 OR1653 53 φ16 56.8* 13 116 690
OR167 7 φ16 31.8 5.5 25.5 112 OR1655 55 φ16 56.8* 13 116 690
OR168 8 φ16 31.8 5.5 25.5 98 OR1656 56 φ16 56.8* 13 116 690
OR169 9 φ16 31.8 5.5 25.5 88 OR1660 60 φ16 61.8 13 121 700
OR1610 10 φ16 31.8 5.5 25.5 80 OR1665 65 φ16 61.8 13 126 710
OR1611 11 φ16 31.8 8 35 130 OR1675 75 φ16 75 15 142.5 750
OR1612 12 φ16 31.8 8 35 125 OR2217 17 φ22 56 25 65 810
OR1613 13 φ16 31.8 8 35 120 OR2218 18 φ22 56 25 65 810
OR1614 14 φ16 31.8 8 35 115 OR2219 19 φ22 56 25 65 810
OR1615 15 φ16 31.8 9 38 135 OR2222 22 φ22 56 25 68 845
OR1616 16 φ16 31.8 9 38 130 OR2223 23 φ22 56 25 70 845
OR1617 17 φ16 31.8 9 38 130 OR2224 24 φ22 56 25 70 845
OR1618 18 φ16 31.8 10 42 140 OR2225 25 φ22 56 25 70 845
OR1619 19 φ16 31.8 10 42 145 OR2227 27 φ22 56 25 72 850
OR1620 20 φ16 31.8 13 51.5 215 OR2228 28 φ22 56 25 72 850
OR1621 21 φ16 31.8 13 51.5 210 OR2229 29 φ22 56 25 75 850
OR1622 22 φ16 31.8 13 51.5 210 OR2230 30 φ22 56 25 75 850
OR1623 23 φ16 31.8 13 51.5 205 OR2232 32 φ22 56 25 76 855
OR1624 24 φ16 31.8 13 51.5 200 OR2234 34 φ22 56 25 78 865
OR1625 25 φ16 31.8 13 57.5 250 OR2235 35 φ22 56 25 80 865
OR1626 26 φ16 31.8 13 57.5 240 OR2236 36 φ22 56 25 80 865
OR1627 27 φ16 31.8 13 57.5 230 OR2238 38 φ22 56 25 90 1000
OR1628 28 φ16 31.8 13 57.5 220 OR2241 41 φ22 56 25 95 1050
OR1629 29 φ16 31.8 13 65.5 290 OR2246 46 φ22 56 25 100 1130
OR1630 30 φ16 31.8 13 65.5 290 OR2250 50 φ22 56 25 106 1280
OR1631 31 φ16 31.8 13 65.5 288 OR2255 55 φ22 65* 25 119 1430
OR1632 32 φ16 31.8 13 65.5 288 OR2256 56 φ22 65* 25 119 1430
OR1633 33 φ16 41.8* 13 75 340 OR2260 60 φ22 65* 25 130 1460
OR1634 34 φ16 41.8* 13 78 360 OR2265 65 φ22 65* 25 136 1500
OR1635 35 φ16 41.8* 13 80 360 OR2275 75 φ22 75* 25 142 1520
OR1636 36 φ16 41.8* 13 80 385 * marks are special fittings, you should adjust the torque according to
OR1638 38 φ16 41.8* 13 85 420 torque wrench manual
