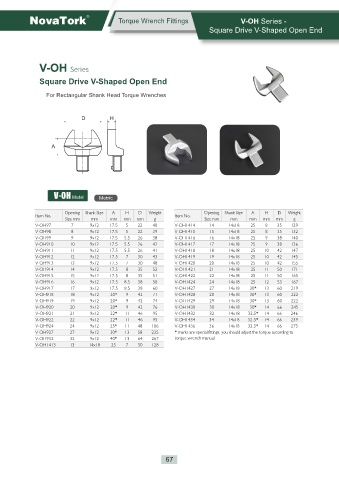

Torque Wrench Fittings V-OH Series -
Square Drive V-Shaped Open End

V-OH Series
Square Drive V-Shaped Open End
NovaTork
For Rectangular Shank Head Torque Wrenches

D H

A

V-OH Model Nfusjd

Opening Shank Size A H D Weight Opening Shank Size A H D Weight
Item No. Item No.
Size mm mm mm mm mm g Size mm mm mm mm mm g
V-OH97 7 9x12 17.5 5 22 40 V-OH1414 14 14x18 25 8 35 129
V-OH98 8 9x12 17.5 5 22 39 V-OH1415 15 14x18 25 8 35 132
V-OH99 9 9x12 17.5 5.5 26 38 V-OH1416 16 14x18 25 9 38 140
V-OH910 10 9x12 17.5 5.5 26 42 V-OH1417 17 14x18 25 9 38 136
V-OH911 11 9x12 17.5 5.5 26 41 V-OH1418 18 14x18 25 10 42 147
V-OH912 12 9x12 17.5 7 30 43 V-OH1419 19 14x18 25 10 42 145
V-OH913 13 9x12 17.5 7 30 48 V-OH1420 20 14x18 25 10 42 155
V-OH914 14 9x12 17.5 8 35 52 V-OH1421 21 14x18 25 11 50 171
V-OH915 15 9x12 17.5 8 35 51 V-OH1422 22 14x18 25 11 50 165
V-OH916 16 9x12 17.5 8.5 38 58 V-OH1424 24 14x18 25 12 53 167
V-OH917 17 9x12 17.5 8.5 38 60 V-OH1427 27 14x18 30* 13 60 219
V-OH918 18 9x12 20* 9 42 71 V-OH1428 28 14x18 30* 13 60 222
V-OH919 19 9x12 20* 9 42 74 V-OH1429 29 14x18 30* 13 60 222
V-OH920 20 9x12 20* 9 42 76 V-OH1430 30 14x18 30* 14 66 245
V-OH921 21 9x12 22* 11 46 95 V-OH1432 32 14x18 32.5* 14 66 246
V-OH922 22 9x12 22* 11 46 95 V-OH1434 34 14x18 32.5* 14 66 239
V-OH924 24 9x12 25* 11 48 106 V-OH1436 36 14x18 32.5* 14 66 275
V-OH927 27 9x12 30* 13 58 235 * marks are special fittings, you should adjust the torque according to
V-OH932 32 9x12 40* 13 64 267 torque wrench manual
V-OH1413 13 14x18 25 7 30 128
