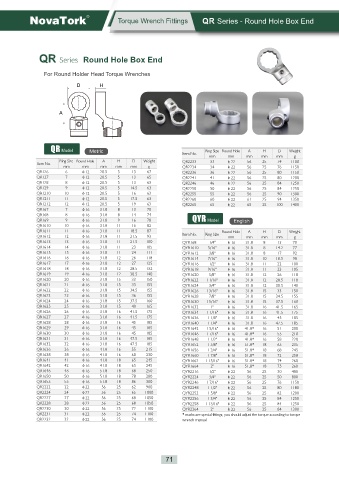

Page 76 - 2024诺特扭力英文NovaTork-Torque

Torque Wrench Fittings QR Series - Round Hole Box End

QR Series Round Hole Box End
NovaTork

For Round Holder Head Torque Wrenches
D H

A

QR Model Nfusjd Ring Size Round Hole A H D Weight
Item No.
mm mm mm mm mm g
Ring Size Round Hole A H D Weight QR2233 33 φ22 56 25 74 1100
Item No.
mm mm mm mm mm g QR2234 34 φ22 56 25 76 1150
QR126 6 φ12 20.5 5 13 67 QR2236 36 φ22 56 25 80 1150
QR127 7 φ12 20.5 5 13 65 QR2241 41 φ22 56 25 80 1200
QR128 8 φ12 20.5 5 13 63 QR2246 46 φ22 56 25 84 1250
QR129 9 φ12 20.5 5 14.5 63 QR2250 50 φ22 56 25 84 1250
QR1210 10 φ12 20.5 5 16 63 QR2255 55 φ22 56 25 90 1300
QR1211 11 φ12 20.5 5 17.5 63 QR2260 60 φ22 61 25 94 1350
QR1212 12 φ12 20.5 5 19 63 QR2265 65 φ22 65 25 100 1400
QR167 7 φ16 31.8 8 13 70
QR168 8 φ16 31.8 8 14 74
QR169 9 φ16 31.8 9 16 78 QYR Model Fohmjti
QR1610 10 φ16 31.8 11 16 82
QR1611 11 φ16 31.8 11 18.5 87 Round Hole A H D Weight
Item No. Ring Size
QR1612 12 φ16 31.8 11 21.5 93 mm mm mm mm g
QR1613 13 φ16 31.8 11 21.5 100 QYR168 1/4" φ16 31.8 8 13 70
QR1614 14 φ16 31.8 11 23 105 QYR1610 5/16" φ16 31.8 8 14.2 77
QR1615 15 φ16 31.8 11 24 111 QYR1612 3/8" φ16 31.8 8 17 92
QR1616 16 φ16 31.8 12 26 118 QYR1614 7/16" φ16 31.8 10 18.5 98
QR1617 17 φ16 31.8 12 27 125 QYR1616 1/2" φ16 31.8 11 22 100
QR1618 18 φ16 31.8 12 28.5 132 QYR1618 9/16" φ16 31.8 11 23 105
QR1619 19 φ16 31.8 12 30.5 140 QYR1620 5/8" φ16 31.8 12 26 118
QR1620 20 φ16 31.8 15 33 150 QYR1622 11/16" φ16 31.8 12 28.5 118
QR1621 21 φ16 31.8 15 33 155 QYR1624 3/4" φ16 31.8 12 30.5 140
QR1622 22 φ16 31.8 15 34.5 155 QYR1626 13/16" φ16 31.8 15 33 150
QR1623 23 φ16 31.8 15 36 155 QYR1628 7/8" φ16 31.8 15 34.5 155
QR1624 24 φ16 31.8 15 37.5 160 QYR1630 15/16" φ16 31.8 15 37.5 160
QR1625 25 φ16 31.8 15 40 165 QYR1632 1" φ16 31.8 16 41.5 165
QR1626 26 φ16 31.8 16 41.5 175 QYR1634 1 1/16" φ16 31.8 16 41.5 175
QR1627 27 φ16 31.8 16 41.5 175 QYR1636 1 1/8" φ16 31.8 16 45 185
QR1628 28 φ16 31.8 16 45 185 QYR1640 1 1/4" φ16 31.8 16 47.5 185
QR1629 29 φ16 31.8 16 45 185 QYR1642 1 5/16" φ16 41.8* 16 51 200
QR1630 30 φ16 31.8 16 45 185 QYR1646 1 7/16" φ16 41.8* 16 55 210
QR1631 31 φ16 31.8 16 47.5 185 QYR1648 1 1/2" φ16 41.8* 16 58 220
QR1632 32 φ16 31.8 16 47.5 185 QYR1652 1 5/8" φ16 51.8* 18 65 235
QR1636 36 φ16 41.8 16 55 215 QYR1656 1 3/4" φ16 51.8* 18 68 245
QR1638 38 φ16 41.8 16 60 230 QYR1660 1 7/8" φ16 51.8* 18 72 258
QR1641 41 φ16 41.8 18 65 245 QYR1662 1 15/16" φ16 51.8* 18 74 260
QR1642 42 φ16 41.8 18 65 245 QYR1664 2" φ16 51.8* 18 75 260
QR1646 46 φ16 51.8 18 68 250 QYR2216 1/2" φ22 56 25 30 480
QR1650 50 φ16 51.8 18 78 280 QYR2224 3/4" φ22 56 25 50 800
QR1655 55 φ16 51.8 18 86 300 QYR2246 1 7/16" φ22 56 25 76 1150
QR2222 22 φ22 56 25 62 900 QYR2248 1 1/2" φ22 56 25 80 1180
QR2224 24 φ22 56 25 65 1000 QYR2252 1 5/8" φ22 56 25 82 1200
QR2227 27 φ22 56 25 68 1050 QYR2256 1 3/4" φ22 56 25 84 1250
QR2228 28 φ22 56 25 68 1050 QYR2258 1 13/16" φ22 56 25 84 1250
QR2230 30 φ22 56 25 72 1100 QYR2264 2" φ22 56 25 84 1300
QR2231 31 φ22 56 25 74 1100 * marks are special fittings, you should adjust the torque according to torque
QR2232 32 φ22 56 25 74 1100 wrench manual
