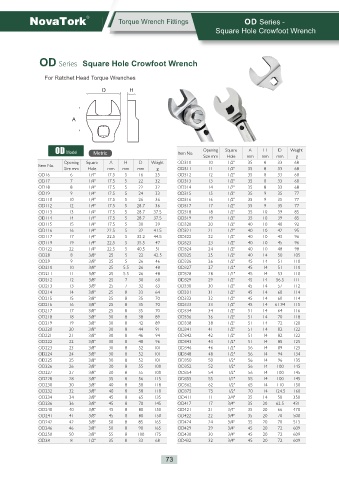

Torque Wrench Fittings OD Series -
Square Hole Crowfoot Wrench

OD Series Square Hole Crowfoot Wrench
NovaTork

For Ratchet Head Torque Wrenches
D H

A

Opening Square A H D Weight
OD Model Nfusjd Item No.
Size mm Hole mm mm mm g
Opening Square A H D Weight OD310 10 1/2" 35 8 33 68
Item No.
Size mm Hole mm mm mm g OD311 11 1/2" 35 8 33 68
OD16 6 1/4" 17.5 5 16 25 OD312 12 1/2" 35 8 33 68
OD17 7 1/4" 17.5 5 22 32 OD313 13 1/2" 35 8 33 68
OD18 8 1/4" 17.5 5 22 32 OD314 14 1/2" 35 8 33 68
OD19 9 1/4" 17.5 5 24 33 OD315 15 1/2" 35 9 35 77
OD110 10 1/4" 17.5 5 26 36 OD316 16 1/2" 35 9 35 77
OD112 12 1/4" 17.5 5 28.7 36 OD317 17 1/2" 35 9 35 77
OD113 13 1/4" 17.5 5 28.7 37.5 OD318 18 1/2" 35 10 39 85
OD114 14 1/4" 17.5 5 28.7 37.5 OD319 19 1/2" 35 10 39 85
OD115 15 1/4" 17.5 5 30 39 OD320 20 1/2" 40 10 40 92
OD116 16 1/4" 22.5 5 32 41.5 OD321 21 1/2" 40 10 42 95
OD117 17 1/4" 22.5 5 32.2 44.5 OD322 22 1/2" 40 10 43 96
OD119 19 1/4" 22.5 5 35.5 47 OD323 23 1/2" 40 10 45 96
OD122 22 1/4" 22.5 5 40.5 51 OD324 24 1/2" 40 10 48 98
OD28 8 3/8" 25 5 22 42.5 OD325 25 1/2" 40 14 50 105
OD29 9 3/8" 25 5 26 46 OD326 26 1/2" 45 14 51 110
OD210 10 3/8" 25 5.5 26 48 OD327 27 1/2" 45 14 51 110
OD211 11 3/8" 25 5.5 26 48 OD328 28 1/2" 45 14 53 110
OD212 12 3/8" 25 7 30 60 OD329 29 1/2" 45 14 56.5 111
OD213 13 3/8" 25 7 32 63 OD330 30 1/2" 45 14 57 112
OD214 14 3/8" 25 8 33 64 OD331 31 1/2" 45 14 60 114
OD215 15 3/8" 25 8 35 70 OD332 32 1/2" 45 14 60 114
OD216 16 3/8" 25 8 35 70 OD333 33 1/2" 45 14 61.94 115
OD217 17 3/8" 25 8 35 70 OD334 34 1/2" 51 14 64 116
OD218 18 3/8" 30 8 38 89 OD336 36 1/2" 51 14 70 118
OD219 19 3/8" 30 8 42 89 OD338 38 1/2" 51 14 72 120
OD220 20 3/8" 30 8 44 91 OD341 41 1/2" 51 14 82 122
OD221 21 3/8" 30 8 46 94 OD342 42 1/2" 51 14 82 122
OD222 22 3/8" 30 8 48 96 OD343 43 1/2" 51 14 85 125
OD223 23 3/8" 30 8 52 101 OD346 46 1/2" 56 14 89 125
OD224 24 3/8" 30 8 52 101 OD348 48 1/2" 56 14 94 134
OD225 25 3/8" 30 8 52 101 OD350 50 1/2" 56 14 96 135
OD226 26 3/8" 30 8 55 100 OD352 52 1/2" 56 14 100 145
OD227 27 3/8" 30 8 55 100 OD354 54 1/2" 56 14 100 145
OD228 28 3/8" 35 8 56 115 OD355 55 1/2" 55 14 100 145
OD230 30 3/8" 40 8 58 118 OD362 62 1/2" 65 14 110 150
OD232 32 3/8" 40 8 58 118 OD375 75 1/2" 70 14 124.5 160
OD234 34 3/8" 45 8 65 135 OD411 11 3/4" 35 14 50 350
OD236 36 3/8" 45 8 70 145 OD417 17 3/4" 35 20 62.5 431
OD240 40 3/8" 45 8 80 150 OD421 21 3/4" 35 20 66 470
OD241 41 3/8" 45 8 80 150 OD422 22 3/4" 35 20 70 500
OD242 42 3/8" 50 8 85 165 OD424 24 3/4" 35 20 70 513
OD246 46 3/8" 50 8 90 165 OD429 29 3/4" 45 20 72 609
OD250 50 3/8" 55 8 100 175 OD430 30 3/4" 45 20 72 609
OD38 8 1/2" 35 8 33 68 OD432 32 3/4" 45 20 72 609
