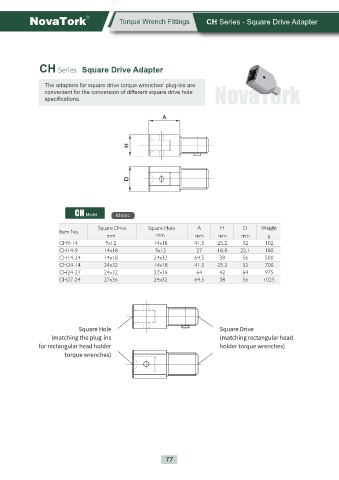

Torque Wrench Fittings CH Series - Square Drive Adapter
CH Series Square Drive Adapter
The adapters for square drive torque wrenches plug-ins are
convenient for the conversion of different square drive hole NovaTork
specifications.
CH Model Nfusjd
Square Drive Square Hole A H D Weight
Item No.
mm mm mm mm mm g
CH9-14 9x12 14x18 41.5 25.2 32 102
CH14-9 14x18 9x12 27 18.8 22.1 180
CH14-24 14x18 24x32 64.5 38 56 500
CH24-14 24x32 14x18 41.5 25.2 32 700
CH24-27 24x32 27x36 64 42 64 975
CH27-24 27x36 24x32 64.5 38 56 1025
Square Hole Square Drive
(matching the plug-ins (matching rectangular head
for rectangular head holder holder torque wrenches)
torque wrenches)
77
