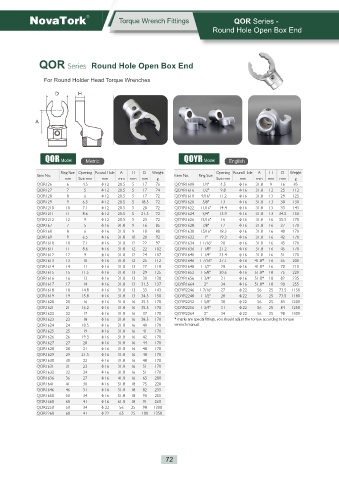

Torque Wrench Fittings QOR Series -
Round Hole Open Box End

QOR Series Round Hole Open Box End
NovaTork
For Round Holder Head Torque Wrenches

D H

A

QOR Model Nfusjd QOYR Model Fohmjti

Ring Size Opening Round Hole A H D Weight Opening Round Hole A H D Weight
Item No. Item No. Ring Size
mm Size mm mm mm mm mm g Size mm mm mm mm mm g
QOR126 6 4.5 φ12 20.5 5 17 76 QOYR1608 1/4" 4.5 φ16 31.8 9 16 85
QOR127 7 5 φ12 20.5 5 17 74 QOYR1616 1/2" 9.8 φ16 31.8 12 25 112
QOR128 8 6 φ12 20.5 5 17 72 QOYR1618 9/16" 11.2 φ16 31.8 13 29 125
QOR129 9 6.5 φ12 20.5 5 18.5 72 QOYR1620 5/8" 13 φ16 31.8 13 30 130
QOR1210 10 7.1 φ12 20.5 5 20 72 QOYR1622 11/16" 14.4 φ16 31.8 13 33 143
QOR1211 11 8.6 φ12 20.5 5 21.5 72 QOYR1624 3/4" 15.9 φ16 31.8 13 34.5 150
QOR1212 12 9 φ12 20.5 5 23 72 QOYR1626 13/16" 16 φ16 31.8 16 35.5 170
QOR167 7 5 φ16 31.8 9 16 85 QOYR1628 7/8" 17 φ16 31.8 16 37 170
QOR168 8 6 φ16 31.8 9 18 88 QOYR1630 15/16" 18.3 φ16 31.8 16 40 170
QOR169 9 6.5 φ16 31.8 10 20 92 QOYR1632 1" 19.3 φ16 31.8 16 42 170
QOR1610 10 7.1 φ16 31.8 12 22 97 QOYR1634 1 1/16" 20 φ16 31.8 16 45 170
QOR1611 11 8.6 φ16 31.8 12 22 102 QOYR1636 1 1/8" 21.2 φ16 31.8 16 45 170
QOR1612 12 9 φ16 31.8 12 24 107 QOYR1640 1 1/4" 23.4 φ16 31.8 16 51 170
QOR1613 13 10 φ16 31.8 12 25 112 QOYR1646 1 7/16" 27.1 φ16 41.8* 16 65 200
QOR1614 14 11 φ16 31.8 13 27 118 QOYR1648 1 1/2" 28 φ16 41.8* 16 70 210
QOR1615 15 11.5 φ16 31.8 13 29 125 QOYR1652 1 5/8" 30.6 φ16 51.8* 18 75 220
QOR1616 16 13 φ16 31.8 13 30 130 QOYR1656 1 3/4" 31 φ16 51.8* 18 82 235
QOR1617 17 14 φ16 31.8 13 31.5 137 QOYR1664 2" 34 φ16 51.8* 18 90 255
QOR1618 18 14.8 φ16 31.8 13 33 143 QOYR2246 1 7/16" 27 φ22 56 25 73.5 1150
QOR1619 19 15.8 φ16 31.8 13 34.5 150 QOYR2248 1 1/2" 28 φ22 56 25 73.5 1180
QOR1620 20 16 φ16 31.8 16 35.5 170 QOYR2252 1 5/8" 30 φ22 56 25 83 1200
QOR1621 21 16.2 φ16 31.8 16 35.5 170 QOYR2256 1 3/4" 31 φ22 56 25 84 1250
QOR1622 22 17 φ16 31.8 16 37 170 QOYR2264 2" 34 φ22 56 25 98 1300
QOR1623 23 18 φ16 31.8 16 38.5 170 * marks are special fittings, you should adjust the torque according to torque
QOR1624 24 18.5 φ16 31.8 16 40 170 wrench manual
QOR1625 25 19 φ16 31.8 16 41 170
QOR1626 26 19.3 φ16 31.8 16 42 170
QOR1627 27 20 φ16 31.8 16 44 170
QOR1628 28 21 φ16 31.8 16 48 170
QOR1629 29 21.5 φ16 31.8 16 48 170
QOR1630 30 22 φ16 31.8 16 48 170
QOR1631 31 23 φ16 31.8 16 51 170
QOR1632 32 24 φ16 31.8 16 51 170
QOR1636 36 27 φ16 41.8 16 65 200
QOR1641 41 30 φ16 51.8 18 75 220
QOR1646 46 31 φ16 51.8 18 82 235
QOR1650 50 34 φ16 51.8 18 90 255
QOR1660 60 41 φ16 61.8 18 91 260
QOR2250 50 34 φ22 56 25 98 1300
QOR2260 60 41 φ22 65 25 100 1350
