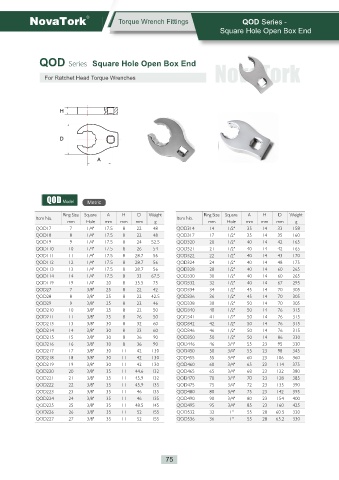

Page 80 - 2024诺特扭力英文NovaTork-Torque

Torque Wrench Fittings QOD Series -
Square Hole Open Box End

QOD Series Square Hole Open Box End
NovaTork

For Ratchet Head Torque Wrenches

H

D

A

QOD Model Nfusjd

Ring Size Square A H D Weight Ring Size Square A H D Weight
Item No. Item No.
mm Hole mm mm mm g mm Hole mm mm mm g
QOD17 7 1/4" 17.5 8 22 48 QOD314 14 1/2" 35 14 33 158
QOD18 8 1/4" 17.5 8 22 48 QOD317 17 1/2" 35 14 35 160
QOD19 9 1/4" 17.5 8 24 52.5 QOD320 20 1/2" 40 14 42 165
QOD110 10 1/4" 17.5 8 26 54 QOD321 21 1/2" 40 14 42 165
QOD111 11 1/4" 17.5 8 28.7 56 QOD322 22 1/2" 40 14 43 170
QOD112 12 1/4" 17.5 8 28.7 56 QOD324 24 1/2" 40 14 48 175
QOD113 13 1/4" 17.5 8 28.7 56 QOD328 28 1/2" 40 14 60 265
QOD114 14 1/4" 17.5 8 33 67.5 QOD330 30 1/2" 40 14 60 265
QOD119 19 1/4" 20 8 35.5 75 QOD332 32 1/2" 40 14 67 295
QOD27 7 3/8" 25 8 22 42 QOD334 34 1/2" 45 14 70 305
QOD28 8 3/8" 25 8 22 42.5 QOD336 36 1/2" 45 14 70 305
QOD29 9 3/8" 25 8 22 46 QOD338 38 1/2" 50 14 70 305
QOD210 10 3/8" 25 8 22 50 QOD340 40 1/2" 50 14 76 315
QOD211 11 3/8" 25 8 26 50 QOD341 41 1/2" 50 14 76 315
QOD213 13 3/8" 30 8 32 60 QOD342 42 1/2" 50 14 76 315
QOD214 14 3/8" 30 8 33 60 QOD346 46 1/2" 50 14 76 315
QOD215 15 3/8" 30 8 36 90 QOD350 50 1/2" 50 14 86 330
QOD216 16 3/8" 30 8 36 90 QOD446 46 3/4" 55 23 95 330
QOD217 17 3/8" 30 11 42 130 QOD450 50 3/4" 55 23 98 345
QOD218 18 3/8" 30 11 42 130 QOD455 55 3/4" 60 23 106 360
QOD219 19 3/8" 30 11 42 130 QOD460 60 3/4" 65 23 114 375
QOD220 20 3/8" 35 11 44.6 132 QOD465 65 3/4" 68 23 122 380
QOD221 21 3/8" 35 11 45.9 132 QOD470 70 3/4" 70 23 128 385
QOD222 22 3/8" 35 11 45.9 135 QOD475 75 3/4" 72 23 135 390
QOD223 23 3/8" 35 11 46 135 QOD480 80 3/4" 75 23 142 395
QOD224 24 3/8" 35 11 46 135 QOD490 90 3/4" 80 23 154 400
QOD225 25 3/8" 35 11 48.5 145 QOD495 95 3/4" 85 23 160 425
QOD226 26 3/8" 35 11 52 155 QOD532 32 1" 55 28 60.5 320
QOD227 27 3/8" 35 11 52 155 QOD536 36 1" 55 28 65.2 330

75
