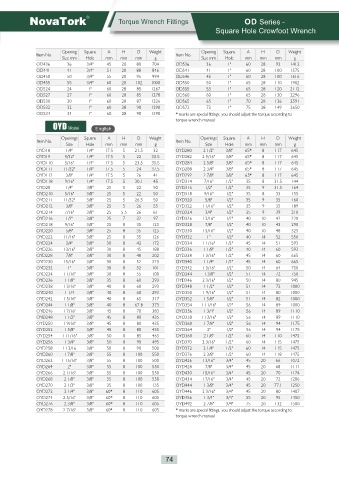

Page 79 - 2024诺特扭力英文NovaTork-Torque

Torque Wrench Fittings OD Series -
Square Hole Crowfoot Wrench

Opening Square A H D Weight Opening Square A H D Weight
Item No. Item No.
Size mm Hole mm mm mm g Size mm Hole mm mm mm g
Series OD436 36 3/4" 45 20 80 704 OD536 36 1" 60 28 93 1412
ovaTork OD441 41 3/4" 51 20 88 846 OD541 41 1" 60 28 100 1575
1616
OD546
46
20
95
994
50
3/4"
55
1"
100
28
60
OD450
OD455
OD555
28
85
1267
55
1"
28
1"
60
120
24
65
2112
OD524 55 3/4" 60 20 102 1000 OD550 50 1" 65 28 110 1902
OD527 27 1" 60 28 85 1278 OD560 60 1" 65 28 130 2296
OD530 30 1" 60 28 87 1326 OD565 65 1" 70 28 136 2591
OD532 32 1" 60 28 90 1390 OD572 72 1" 75 28 149 2650
OD534 34 1" 60 28 90 1390 * marks are special fittings, you should adjust the torque according to
torque wrench manual
OYD Model Fohmjti
Openings Square A H D Weight Openings Square A H D Weight
Item No. Item No.
Size Hole mm mm mm g Size Hole mm mm mm g
OYD18 1/4" 1/4" 17.5 5 21.5 32 OYD280 2 1/2" 3/8" 65* 8 117 645
Nfusjd
OYD19 9/32" 1/4" 17.5 5 22 33.5 OYD282 2 9/16" 3/8" 65* 8 117 645
OYD110 5/16" 1/4" 17.5 5 23.5 35.5 OYD284 2 5/8" 3/8" 65* 8 117 645
OYD111 11/32" 1/4" 17.5 5 24 37.5 OYD288 2 3/4" 3/8" 65* 8 117 645
OYD112 3/8" 1/4" 17.5 5 26 41 OYD292 2 7/8" 3/8" 65* 8 117 645
OYD118 9/16" 1/4" 17.5 5 30.1 45 OYD314 7/16" 1/2" 35 8 31.5 144
OYD28 1/4" 3/8" 25 5 22 50 OYD316 1/2" 1/2" 35 9 31.5 164
OYD210 5/16" 3/8" 25 5 22 50 OYD318 9/16" 1/2" 35 8 33 155
OYD211 11/32" 3/8" 25 5 26.3 50 OYD320 5/8" 1/2" 35 9 35 160
OYD212 3/8" 3/8" 25 5 26 55 OYD322 11/16" 1/2" 35 9 35 189
OYD214 7/16" 3/8" 25 5.5 26 61 OYD324 3/4" 1/2" 35 9 39 210
OYD216 1/2" 3/8" 25 7 32 97 OYD326 13/16" 1/2" 40 10 42 220
OYD218 9/16" 3/8" 25 8 35 123 OYD328 7/8" 1/2" 40 10 43 290
OYD220 5/8" 3/8" 25 8 35 125 OYD330 15/16" 1/2" 40 10 48 325
OYD222 11/16" 3/8" 25 8 35 126 OYD332 1“ 1/2" 40 14 52 550
OYD224 3/4" 3/8" 30 8 42 172 OYD334 1 1/16" 1/2" 45 14 51 593
OYD226 13/16" 3/8" 30 8 45 188 OYD336 1 1/8" 1/2" 40 14 60 593
OYD228 7/8" 3/8" 30 8 48 202 OYD338 1 3/16" 1/2" 45 14 60 665
OYD230 15/16" 3/8" 30 8 52 223 OYD340 1 1/4" 1/2" 45 14 60 665
OYD232 1" 3/8" 30 8 52 101 OYD342 1 5/16" 1/2" 50 14 64 750
OYD234 1 1/16" 3/8" 30 8 55 100 OYD344 1 3/8" 1/2" 51 14 72 750
OYD236 1 1/8" 3/8" 35 8 60 293 OYD346 2 3/16" 1/2" 50 14 80 945
OYD238 1 3/16" 3/8" 40 8 60 293 OYD348 1 1/2" 1/2" 51 14 72 1000
OYD240 1 1/4 3/8" 40 8 60 293 OYD350 1 9/16" 1/2" 51 14 80 1000
OYD242 1 5/16" 3/8" 40 8 65 317 OYD352 1 5/8" 1/2" 51 14 82 1000
OYD244 1 1/8" 3/8" 40 8 67.8 373 OYD354 1 11/16" 1/2" 56 14 89 1000
OYD246 1 7/16" 3/8" 45 8 70 383 OYD356 1 3/4" 1/2" 56 14 89 1110
OYD248 1 1/2" 3/8" 45 8 80 435 OYD358 1 13/16" 1/2" 56 14 89 1110
OYD250 1 9/16" 3/8" 45 8 80 435 OYD360 1 7/8" 1/2" 56 14 94 1175
OYD252 1 5/8" 3/8" 45 8 80 435 OYD364 2" 1/2" 56 14 94 1175
OYD254 1 11/16" 3/8" 50 8 85 465 OYD368 2 1/8" 1/2" 60 14 110 1475
OYD256 1 3/4" 3/8" 50 8 90 495 OYD370 2 3/16" 1/2" 60 14 115 1475
OYD258 1 13/16 3/8" 50 8 90 500 OYD372 2 1/4" 1/2" 60 14 115 1475
OYD260 1 7/8" 3/8" 55 8 100 550 OYD376 2 3/8" 1/2" 60 14 118 1475
OYD262 1 15/16" 3/8" 55 8 100 500 OYD426 13/16" 3/4" 45 20 66 1072
OYD264 2" 3/8" 55 8 100 550 OYD428 7/8" 3/4" 45 20 68 1111
OYD266 2 1/16" 3/8" 55 8 100 550 OYD430 15/16" 3/4" 45 20 70 1174
OYD268 2 1/8" 3/8" 55 8 100 550 OYD434 17/16" 3/4" 45 20 72 1206
OYD270 2 1/3" 3/8" 35 8 100 135 OYD444 1 3/8" 3/4" 45 20 77.1 1250
OYD272 2 1/4" 3/8" 60* 8 110 605 OYD446 2 3/16" 3/4" 45 20 80 1407
OYD274 2 5/16" 3/8" 60* 8 110 605 OYD456 1 3/4" 3/4" 55 20 95 1450
OYD276 2 3/8" 3/8" 60* 8 110 605 OYD492 2 7/8" 3/4" 75 20 132 1500
OYD278 2 7/16" 3/8" 60* 8 110 605 * marks are special fittings, you should adjust the torque according to
torque wrench manual
