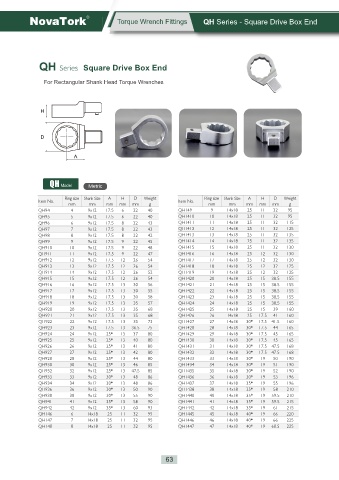

Torque Wrench Fittings QH Series - Square Drive Box End
QH Series Square Drive Box End
NovaTork
For Rectangular Shank Head Torque Wrenches
H
D
A
QH Model Nfusjd
Ring size Shank Size A H D Weight Ring size Shank Size A H D Weight
Item No. Item No.
mm mm mm mm mm g mm mm mm mm mm g
QH94 4 9x12 17.5 6 22 40 QH149 9 14x18 25 11 32 95
QH95 5 9x12 17.5 6 22 40 QH1410 10 14x18 25 11 32 95
QH96 6 9x12 17.5 8 22 43 QH1411 11 14x18 25 11 32 115
QH97 7 9x12 17.5 8 22 43 QH1412 12 14x18 25 11 32 125
QH98 8 9x12 17.5 8 22 42 QH1413 13 14x18 25 11 32 135
QH99 9 9x12 17.5 9 22 45 QH1414 14 14x18 25 11 32 135
QH910 10 9x12 17.5 9 22 48 QH1415 15 14x18 25 11 32 130
QH911 11 9x12 17.5 9 22 47 QH1416 16 14x18 25 12 32 130
QH912 12 9x12 17.5 12 26 54 QH1417 17 14x18 25 12 32 130
QH913 13 9x12 17.5 12 26 54 QH1418 18 14x18 25 12 32 125
QH914 14 9x12 17.5 12 26 52 QH1419 19 14x18 25 12 32 125
QH915 15 9x12 17.5 12 26 54 QH1420 20 14x18 25 15 38.5 155
QH916 16 9x12 17.5 13 30 56 QH1421 21 14x18 25 15 38.5 155
QH917 17 9x12 17.5 13 30 55 QH1422 22 14x18 25 15 38.5 155
QH918 18 9x12 17.5 13 30 58 QH1423 23 14x18 25 15 38.5 155
QH919 19 9x12 17.5 13 35 57 QH1424 24 14x18 25 15 38.5 155
QH920 20 9x12 17.5 13 35 68 QH1425 25 14x18 25 15 39 160
QH921 21 9x12 17.5 13 35 68 QH1426 26 14x18 25 17.5 41 160
QH922 22 9x12 17.5 13 35 73 QH1427 27 14x18 30* 17.5 41.5 160
QH923 23 9x12 17.5 13 36.5 75 QH1428 28 14x18 30* 17.5 44 165
QH924 24 9x12 25* 13 37 80 QH1429 29 14x18 30* 17.5 45 165
QH925 25 9x12 25* 13 40 80 QH1430 30 14x18 30* 17.5 45 165
QH926 26 9x12 25* 13 41 80 QH1431 31 14x18 30* 17.5 47.5 168
QH927 27 9x12 25* 13 42 80 QH1432 32 14x18 30* 17.5 47.5 168
QH928 28 9x12 25* 13 44 80 QH1433 33 14x18 30* 19 50 190
QH930 30 9x12 25* 13 46 85 QH1434 34 14x18 30* 19 51 190
QH932 32 9x12 25* 13 47.5 85 QH1435 35 14x18 30* 19 52 190
QH933 33 9x12 30* 13 48 86 QH1436 36 14x18 30* 19 53 196
QH934 34 9x12 30* 13 48 86 QH1437 37 14x18 35* 19 55 196
QH936 36 9x12 30* 13 50 90 QH1438 38 14x18 35* 19 58 210
QH938 38 9x12 30* 13 55 90 QH1440 40 14x18 35* 19 59.5 210
QH941 41 9x12 35* 13 58 90 QH1441 41 14x18 35* 19 59.5 215
QH942 42 9x12 35* 13 60 93 QH1442 42 14x18 35* 19 61 215
QH146 6 14x18 25 11 32 95 QH1445 45 14x18 40* 19 66 220
QH147 7 14x18 25 11 32 95 QH1446 46 14x18 40* 19 66 225
QH148 8 14x18 25 11 32 95 QH1447 47 14x18 40* 19 68.5 225
