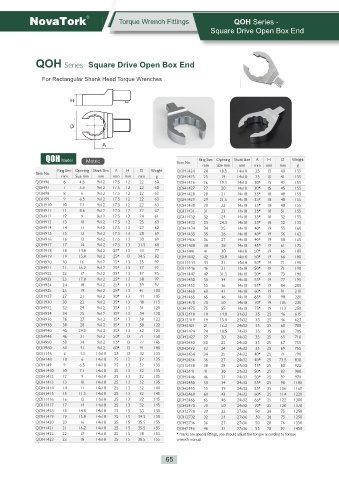

Page 70 - 2024诺特扭力英文NovaTork-Torque

Torque Wrench Fittings QOH Series -
Square Drive Open Box End

QOH Series Square Drive Open Box End
NovaTork
For Rectangular Shank Head Torque Wrenches

H

D

A

QOH Model Nfusjd Item No. Ring Size Opening Shark Size A H D Weight
mm Size mm mm mm mm mm g
Ring Size Opening Shark Size A H D Weight QOH1424 24 18.5 14x18 25 15 40 155
Item No.
mm Size mm mm mm mm mm g QOH1425 25 19 14x18 25 15 41 155
QOH96 6 4.3 9x12 17.5 12 22 60 QOH1426 26 19.3 14x18 30* 15 42 155
QOH97 7 5.3 9x12 17.5 12 22 60 QOH1427 27 20 14x18 30* 15 45 155
QOH98 8 6 9x12 17.5 12 22 63 QOH1428 28 21 14x18 35* 18 48 155
QOH99 9 6.5 9x12 17.5 12 22 63 QOH1429 29 21.5 14x18 35* 18 48 155
QOH910 10 7.1 9x12 17.5 12 22 63 QOH1430 30 22 14x18 35* 18 48 155
QOH911 11 8.6 9x12 17.5 12 22 62 QOH1431 31 23 14x18 35* 18 51 155
QOH912 12 9 9x12 17.5 12 24 61 QOH1432 32 24 14x18 35* 18 52 155
QOH913 13 10 9x12 17.5 12 25 63 QOH1433 33 24.3 14x18 35* 18 52 155
QOH914 14 11 9x12 17.5 12 27 62 QOH1434 34 25 14x18 40* 19 55 160
QOH915 15 12 9x12 17.5 13 28 69 QOH1435 35 26 14x18 40* 19 56 162
QOH916 16 13 9x12 17.5 13 30 69 QOH1436 36 27 14x18 40* 19 58 165
QOH917 17 14 9x12 17.5 13 31.5 68 QOH1438 38 28 14x18 45* 19 61 175
QOH918 18 14.8 9x12 25* 13 33 77 QOH1441 41 30 14x18 50* 19 65 180
QOH919 19 15.8 9x12 25* 13 34.5 82 QOH1442 42 30.8 14x18 50* 19 66 180
QOH920 20 16 9x12 25* 13 35 92 QOH1444 44 31 14x18 50* 19 71 190
QOH921 21 16.2 9x12 25* 13 37 92 QOH1446 46 31 14x18 50* 19 71 190
QOH922 22 17 9x12 25* 13 37 95 QOH1447 47 31.5 14x18 50* 19 73 190
QOH923 23 17.8 9x12 25* 13 38 97 QOH1450 50 34 14x18 55* 19 77 195
QOH924 24 18 9x12 25* 13 39 97 QOH1455 55 36 14x18 55* 19 84 200
QOH925 25 19 9x12 25* 13 41 100 QOH1460 60 41 14x18 60* 19 91 210
QOH927 27 21 9x12 30* 13 44 105 QOH1465 65 46 14x18 65* 19 98 220
QOH930 30 22 9x12 35* 13 48 115 QOH1470 70 50 14x18 70* 19 105 230
QOH932 32 24 9x12 35* 13 51 120 QOH1475 75 55 14x18 75* 19 113 250
QOH934 34 25 9x12 35* 13 54 120 QOH2418 18 14.8 24x32 35 25 46 615
QOH936 36 27 9x12 35* 13 58 122 QOH2419 19 15.8 24x32 35 25 46 627
QOH938 38 28 9x12 35* 13 58 122 QOH2421 21 16.2 24x32 35 25 60 700
QOH940 40 29.5 9x12 35* 13 62 125 QOH2424 24 18.5 24x32 35 25 60 705
QOH946 46 31 9x12 50* 13 71 150 QOH2427 27 20 24x32 35 25 63 710
QOH950 50 34 9x12 55* 13 77 165 QOH2430 30 22 24x32 35 25 67 755
QOH960 60 41 9x12 60* 13 91 180 QOH2432 32 24 24x32 35 25 69 755
QOH146 6 4.3 14x18 25 13 32 135 QOH2434 34 25 24x32 40* 25 71 790
QOH148 10 6 14x18 25 13 32 135 QOH2436 36 27 24x32 40* 25 73.5 830
QOH149 9 6.5 14x18 25 13 32 135 QOH2438 38 28 24x32 45* 25 80 922
QOH1410 10 7.1 14x18 25 13 32 135 QOH2441 41 30 24x32 50* 25 83 980
QOH1412 12 9 14x18 25 13 32 135 QOH2446 46 32 24x32 50* 25 92 970
QOH1413 13 10 14x18 25 13 32 135 QOH2450 50 34 24x32 55* 25 98 1180
QOH1414 14 11 14x18 25 13 32 140 QOH2455 55 39 24x32 55* 25 106 1160
QOH1415 15 11.5 14x18 25 13 32 145 QOH2460 60 43 24x32 60* 25 114 1220
QOH1416 16 13 14x18 25 13 32 145 QOH2465 65 46 24x32 65* 25 122 1300
QOH1417 17 14 14x18 25 13 32 145 QOH2470 70 50 24x32 70* 25 128 1370
QOH1418 18 14.8 14x18 25 15 33 150 QOH2730 30 22 27x36 50 28 75 1250
QOH1419 19 15.8 14x18 25 15 34.5 150 QOH2732 32 24 27x36 50 28 75 1250
QOH1420 20 16 14x18 25 15 35.5 155 QOH2736 36 27 27x36 50 28 76 1350
QOH1421 21 16.2 14x18 25 15 35.5 155 QOH2746 46 31 27x36 55 28 92 1450
QOH1422 22 17 14x18 25 15 38 155 * marks are special fittings, you should adjust the torque according to torque
QOH1423 23 18 14x18 25 15 38.5 155 wrench manual
