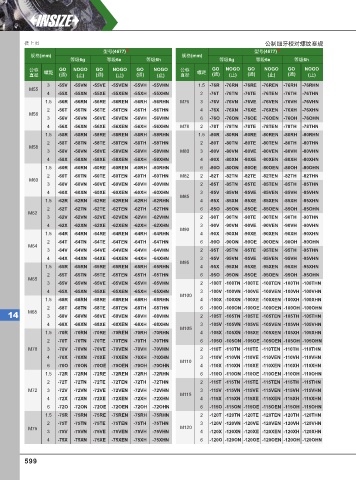

Page 608 - 英示测量INSIZE2025-v.66

接上页 公制细牙校对螺纹塞规
型号(4677) * 型号(4677) *
规格(mm) 规格(mm)
等级6g 等级6e 等级6h 等级6g 等级6e 等级6h
公称 螺距 GO NOGO GO NOGO GO NOGO 公称 螺距 GO NOGO GO NOGO GO NOGO
直径 (通) (止) (通) (止) (通) (止) 直径 (通) (止) (通) (止) (通) (止)
3 -55V -55VN -55VE -55VEN -55VH -55VHN 1.5 -76R -76RN -76RE -76REN -76RH -76RHN
M55
4 -55X -55XN -55XE -55XEN -55XH -55XHN 2 -76T -76TN -76TE -76TEN -76TH -76THN
1.5 -56R -56RN -56RE -56REN -56RH -56RHN M76 3 -76V -76VN -76VE -76VEN -76VH -76VHN
2 -56T -56TN -56TE -56TEN -56TH -56THN 4 -76X -76XN -76XE -76XEN -76XH -76XHN
M56
3 -56V -56VN -56VE -56VEN -56VH -56VHN 6 -76O -76ON -76OE -76OEN -76OH -76OHN
4 -56X -56XN -56XE -56XEN -56XH -56XHN M78 2 -78T -78TN -78TE -78TEN -78TH -78THN
1.5 -58R -58RN -58RE -58REN -58RH -58RHN 1.5 -80R -80RN -80RE -80REN -80RH -80RHN
2 -58T -58TN -58TE -58TEN -58TH -58THN 2 -80T -80TN -80TE -80TEN -80TH -80THN
M58
3 -58V -58VN -58VE -58VEN -58VH -58VHN M80 3 -80V -80VN -80VE -80VEN -80VH -80VHN
4 -58X -58XN -58XE -58XEN -58XH -58XHN 4 -80X -80XN -80XE -80XEN -80XH -80XHN
1.5 -60R -60RN -60RE -60REN -60RH -60RHN 6 -80O -80ON -80OE -80OEN -80OH -80OHN
2 -60T -60TN -60TE -60TEN -60TH -60THN M82 2 -82T -82TN -82TE -82TEN -82TH -82THN
M60
3 -60V -60VN -60VE -60VEN -60VH -60VHN 2 -85T -85TN -85TE -85TEN -85TH -85THN
4 -60X -60XN -60XE -60XEN -60XH -60XHN 3 -85V -85VN -85VE -85VEN -85VH -85VHN
M85
1.5 -62R -62RN -62RE -62REN -62RH -62RHN 4 -85X -85XN -85XE -85XEN -85XH -85XHN
2 -62T -62TN -62TE -62TEN -62TH -62THN 6 -85O -85ON -85OE -85OEN -85OH -85OHN
M62
3 -62V -62VN -62VE -62VEN -62VH -62VHN 2 -90T -90TN -90TE -90TEN -90TH -90THN
4 -62X -62XN -62XE -62XEN -62XH -62XHN 3 -90V -90VN -90VE -90VEN -90VH -90VHN
M90
1.5 -64R -64RN -64RE -64REN -64RH -64RHN 4 -90X -90XN -90XE -90XEN -90XH -90XHN
2 -64T -64TN -64TE -64TEN -64TH -64THN 6 -90O -90ON -90OE -90OEN -90OH -90OHN
M64
3 -64V -64VN -64VE -64VEN -64VH -64VHN 2 -95T -95TN -95TE -95TEN -95TH -95THN
4 -64X -64XN -64XE -64XEN -64XH -64XHN 3 -95V -95VN -95VE -95VEN -95VH -95VHN
M95
1.5 -65R -65RN -65RE -65REN -65RH -65RHN 4 -95X -95XN -95XE -95XEN -95XH -95XHN
2 -65T -65TN -65TE -65TEN -65TH -65THN 6 -95O -95ON -95OE -95OEN -95OH -95OHN
M65
3 -65V -65VN -65VE -65VEN -65VH -65VHN 2 -100T -100TN -100TE -100TEN -100TH -100THN
4 -65X -65XN -65XE -65XEN -65XH -65XHN 3 -100V -100VN -100VE -100VEN -100VH -100VHN
M100
1.5 -68R -68RN -68RE -68REN -68RH -68RHN 4 -100X -100XN -100XE -100XEN -100XH -100XHN
2 -68T -68TN -68TE -68TEN -68TH -68THN 6 -100O -100ON -100OE -100OEN -100OH -100OHN
14 M68 3 -68V -68VN -68VE -68VEN -68VH -68VHN 2 -105T -105TN -105TE -105TEN -105TH -105THN
4 -68X -68XN -68XE -68XEN -68XH -68XHN 3 -105V -105VN -105VE -105VEN -105VH -105VHN
M105
1.5 -70R -70RN -70RE -70REN -70RH -70RHN 4 -105X -105XN -105XE -105XEN -105XH -105XHN
2 -70T -70TN -70TE -70TEN -70TH -70THN 6 -105O -105ON -105OE -105OEN -105OH -105OHN
M70 3 -70V -70VN -70VE -70VEN -70VH -70VHN 2 -110T -110TN -110TE -110TEN -110TH -110THN
4 -70X -70XN -70XE -70XEN -70XH -70XHN 3 -110V -110VN -110VE -110VEN -110VH -110VHN
M110
6 -70O -70ON -70OE -70OEN -70OH -70OHN 4 -110X -110XN -110XE -110XEN -110XH -110XHN
1.5 -72R -72RN -72RE -72REN -72RH -72RHN 6 -110O -110ON -110OE -110OEN -110OH -110OHN
2 -72T -72TN -72TE -72TEN -72TH -72THN 2 -115T -115TN -115TE -115TEN -115TH -115THN
M72 3 -72V -72VN -72VE -72VEN -72VH -72VHN 3 -115V -115VN -115VE -115VEN -115VH -115VHN
M115
4 -72X -72XN -72XE -72XEN -72XH -72XHN 4 -115X -115XN -115XE -115XEN -115XH -115XHN
6 -72O -72ON -72OE -72OEN -72OH -72OHN 6 -115O -115ON -115OE -115OEN -115OH -115OHN
1.5 -75R -75RN -75RE -75REN -75RH -75RHN 2 -120T -120TN -120TE -120TEN -120TH -120THN
2 -75T -75TN -75TE -75TEN -75TH -75THN 3 -120V -120VN -120VE -120VEN -120VH -120VHN
M75 M120
3 -75V -75VN -75VE -75VEN -75VH -75VHN 4 -120X -120XN -120XE -120XEN -120XH -120XHN
4 -75X -75XN -75XE -75XEN -75XH -75XHN 6 -120O -120ON -120OE -120OEN -120OH -120OHN

599
