P. 606

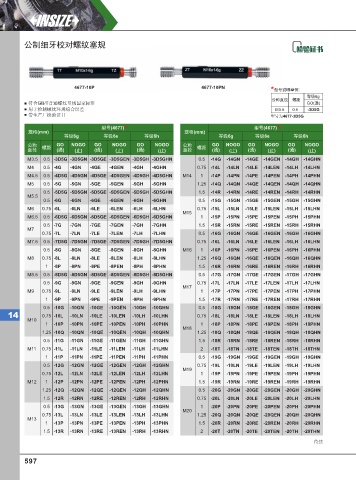

公制细牙校对螺纹塞规
4677-10P 4677-10PN
* 型号说明举例:
等级6g
公称直径 螺距
符合GB/T普通螺纹量规国家标准 GO(通)
用于检测螺纹环规综合误差 M3.5 0.5 -3D5G
带生产厂检验证书 型号为4677-3D5G
型号(4677) * 型号(4677) *
规格(mm) 规格(mm)
等级6g 等级6e 等级6h 等级6g 等级6e 等级6h
公称 螺距 GO NOGO GO NOGO GO NOGO 公称 螺距 GO NOGO GO NOGO GO NOGO
直径 (通) (止) (通) (止) (通) (止) 直径 (通) (止) (通) (止) (通) (止)
M3.5 0.5 -3D5G -3D5GN -3D5GE -3D5GEN -3D5GH -3D5GHN 0.5 -14G -14GN -14GE -14GEN -14GH -14GHN
M4 0.5 -4G -4GN -4GE -4GEN -4GH -4GHN 0.75 -14L -14LN -14LE -14LEN -14LH -14LHN
M4.5 0.5 -4D5G -4D5GN -4D5GE -4D5GEN -4D5GH -4D5GHN M14 1 -14P -14PN -14PE -14PEN -14PH -14PHN
M5 0.5 -5G -5GN -5GE -5GEN -5GH -5GHN 1.25 -14Q -14QN -14QE -14QEN -14QH -14QHN
0.5 -5D5G -5D5GN -5D5GE -5D5GEN -5D5GH -5D5GHN 1.5 -14R -14RN -14RE -14REN -14RH -14RHN
M5.5
0.5 -6G -6GN -6GE -6GEN -6GH -6GHN 0.5 -15G -15GN -15GE -15GEN -15GH -15GHN
M6 0.75 -6L -6LN -6LE -6LEN -6LH -6LHN 0.75 -15L -15LN -15LE -15LEN -15LH -15LHN
M15
M6.5 0.5 -6D5G -6D5GN -6D5GE -6D5GEN -6D5GH -6D5GHN 1 -15P -15PN -15PE -15PEN -15PH -15PHN
0.5 -7G -7GN -7GE -7GEN -7GH -7GHN 1.5 -15R -15RN -15RE -15REN -15RH -15RHN
M7
0.75 -7L -7LN -7LE -7LEN -7LH -7LHN 0.5 -16G -16GN -16GE -16GEN -16GH -16GHN
M7.5 0.5 -7D5G -7D5GN -7D5GE -7D5GEN -7D5GH -7D5GHN 0.75 -16L -16LN -16LE -16LEN -16LH -16LHN
0.5 -8G -8GN -8GE -8GEN -8GH -8GHN M16 1 -16P -16PN -16PE -16PEN -16PH -16PHN
M8 0.75 -8L -8LN -8LE -8LEN -8LH -8LHN 1.25 -16Q -16QN -16QE -16QEN -16QH -16QHN
1 -8P -8PN -8PE -8PEN -8PH -8PHN 1.5 -16R -16RN -16RE -16REN -16RH -16RHN
M8.5 0.5 -8D5G -8D5GN -8D5GE -8D5GEN -8D5GH -8D5GHN 0.5 -17G -17GN -17GE -17GEN -17GH -17GHN
0.5 -9G -9GN -9GE -9GEN -9GH -9GHN 0.75 -17L -17LN -17LE -17LEN -17LH -17LHN
M17
M9 0.75 -9L -9LN -9LE -9LEN -9LH -9LHN 1 -17P -17PN -17PE -17PEN -17PH -17PHN
1 -9P -9PN -9PE -9PEN -9PH -9PHN 1.5 -17R -17RN -17RE -17REN -17RH -17RHN
0.5 -10G -10GN -10GE -10GEN -10GH -10GHN 0.5 -18G -18GN -18GE -18GEN -18GH -18GHN
14 0.75 -10L -10LN -10LE -10LEN -10LH -10LHN 0.75 -18L -18LN -18LE -18LEN -18LH -18LHN
M10
1 -10P -10PN -10PE -10PEN -10PH -10PHN 1 -18P -18PN -18PE -18PEN -18PH -18PHN
M18
1.25 -10Q -10QN -10QE -10QEN -10QH -10QHN 1.25 -18Q -18QN -18QE -18QEN -18QH -18QHN
0.5 -11G -11GN -11GE -11GEN -11GH -11GHN 1.5 -18R -18RN -18RE -18REN -18RH -18RHN
M11 0.75 -11L -11LN -11LE -11LEN -11LH -11LHN 2 -18T -18TN -18TE -18TEN -18TH -18THN
1 -11P -11PN -11PE -11PEN -11PH -11PHN 0.5 -19G -19GN -19GE -19GEN -19GH -19GHN
0.5 -12G -12GN -12GE -12GEN -12GH -12GHN 0.75 -19L -19LN -19LE -19LEN -19LH -19LHN
M19
0.75 -12L -12LN -12LE -12LEN -12LH -12LHN 1 -19P -19PN -19PE -19PEN -19PH -19PHN
M12 1 -12P -12PN -12PE -12PEN -12PH -12PHN 1.5 -19R -19RN -19RE -19REN -19RH -19RHN
1.25 -12Q -12QN -12QE -12QEN -12QH -12QHN 0.5 -20G -20GN -20GE -20GEN -20GH -20GHN
1.5 -12R -12RN -12RE -12REN -12RH -12RHN 0.75 -20L -20LN -20LE -20LEN -20LH -20LHN
0.5 -13G -13GN -13GE -13GEN -13GH -13GHN 1 -20P -20PN -20PE -20PEN -20PH -20PHN
M20
0.75 -13L -13LN -13LE -13LEN -13LH -13LHN 1.25 -20Q -20QN -20QE -20QEN -20QH -20QHN
M13
1 -13P -13PN -13PE -13PEN -13PH -13PHN 1.5 -20R -20RN -20RE -20REN -20RH -20RHN
1.5 -13R -13RN -13RE -13REN -13RH -13RHN 2 -20T -20TN -20TE -20TEN -20TH -20THN
待续
