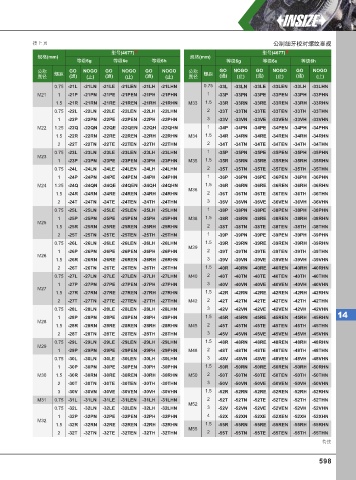

接上页 公制细牙校对螺纹塞规
型号(4677) * 型号(4677) *
规格(mm) 规格(mm)
等级6g 等级6e 等级6h 等级6g 等级6e 等级6h
公称 GO NOGO GO NOGO GO NOGO 公称 GO NOGO GO NOGO GO NOGO
直径 螺距 (通) (止) (通) (止) (通) (止) 直径 螺距 (通) (止) (通) (止) (通) (止)
0.75 -21L -21LN -21LE -21LEN -21LH -21LHN 0.75 -33L -33LN -33LE -33LEN -33LH -33LHN
M21 1 -21P -21PN -21PE -21PEN -21PH -21PHN 1 -33P -33PN -33PE -33PEN -33PH -33PHN
1.5 -21R -21RN -21RE -21REN -21RH -21RHN M33 1.5 -33R -33RN -33RE -33REN -33RH -33RHN
0.75 -22L -22LN -22LE -22LEN -22LH -22LHN 2 -33T -33TN -33TE -33TEN -33TH -33THN
1 -22P -22PN -22PE -22PEN -22PH -22PHN 3 -33V -33VN -33VE -33VEN -33VH -33VHN
M22 1.25 -22Q -22QN -22QE -22QEN -22QH -22QHN 1 -34P -34PN -34PE -34PEN -34PH -34PHN
1.5 -22R -22RN -22RE -22REN -22RH -22RHN M34 1.5 -34R -34RN -34RE -34REN -34RH -34RHN
2 -22T -22TN -22TE -22TEN -22TH -22THN 2 -34T -34TN -34TE -34TEN -34TH -34THN
0.75 -23L -23LN -23LE -23LEN -23LH -23LHN 1 -35P -35PN -35PE -35PEN -35PH -35PHN
M23
1 -23P -23PN -23PE -23PEN -23PH -23PHN M35 1.5 -35R -35RN -35RE -35REN -35RH -35RHN
0.75 -24L -24LN -24LE -24LEN -24LH -24LHN 2 -35T -35TN -35TE -35TEN -35TH -35THN
1 -24P -24PN -24PE -24PEN -24PH -24PHN 1 -36P -36PN -36PE -36PEN -36PH -36PHN
M24 1.25 -24Q -24QN -24QE -24QEN -24QH -24QHN 1.5 -36R -36RN -36RE -36REN -36RH -36RHN
M36
1.5 -24R -24RN -24RE -24REN -24RH -24RHN 2 -36T -36TN -36TE -36TEN -36TH -36THN
2 -24T -24TN -24TE -24TEN -24TH -24THN 3 -36V -36VN -36VE -36VEN -36VH -36VHN
0.75 -25L -25LN -25LE -25LEN -25LH -25LHN 1 -38P -38PN -38PE -38PEN -38PH -38PHN
1 -25P -25PN -25PE -25PEN -25PH -25PHN M38 1.5 -38R -38RN -38RE -38REN -38RH -38RHN
M25
1.5 -25R -25RN -25RE -25REN -25RH -25RHN 2 -38T -38TN -38TE -38TEN -38TH -38THN
2 -25T -25TN -25TE -25TEN -25TH -25THN 1 -39P -39PN -39PE -39PEN -39PH -39PHN
0.75 -26L -26LN -26LE -26LEN -26LH -26LHN 1.5 -39R -39RN -39RE -39REN -39RH -39RHN
M39
1 -26P -26PN -26PE -26PEN -26PH -26PHN 2 -39T -39TN -39TE -39TEN -39TH -39THN
M26
1.5 -26R -26RN -26RE -26REN -26RH -26RHN 3 -39V -39VN -39VE -39VEN -39VH -39VHN
2 -26T -26TN -26TE -26TEN -26TH -26THN 1.5 -40R -40RN -40RE -40REN -40RH -40RHN
0.75 -27L -27LN -27LE -27LEN -27LH -27LHN M40 2 -40T -40TN -40TE -40TEN -40TH -40THN
1 -27P -27PN -27PE -27PEN -27PH -27PHN 3 -40V -40VN -40VE -40VEN -40VH -40VHN
M27
1.5 -27R -27RN -27RE -27REN -27RH -27RHN 1.5 -42R -42RN -42RE -42REN -42RH -42RHN
2 -27T -27TN -27TE -27TEN -27TH -27THN M42 2 -42T -42TN -42TE -42TEN -42TH -42THN
0.75 -28L -28LN -28LE -28LEN -28LH -28LHN 3 -42V -42VN -42VE -42VEN -42VH -42VHN
1 -28P -28PN -28PE -28PEN -28PH -28PHN 1.5 -45R -45RN -45RE -45REN -45RH -45RHN 14
M28
1.5 -28R -28RN -28RE -28REN -28RH -28RHN M45 2 -45T -45TN -45TE -45TEN -45TH -45THN
2 -28T -28TN -28TE -28TEN -28TH -28THN 3 -45V -45VN -45VE -45VEN -45VH -45VHN
0.75 -29L -29LN -29LE -29LEN -29LH -29LHN 1.5 -48R -48RN -48RE -48REN -48RH -48RHN
M29
1 -29P -29PN -29PE -29PEN -29PH -29PHN M48 2 -48T -48TN -48TE -48TEN -48TH -48THN
0.75 -30L -30LN -30LE -30LEN -30LH -30LHN 3 -48V -48VN -48VE -48VEN -48VH -48VHN
1 -30P -30PN -30PE -30PEN -30PH -30PHN 1.5 -50R -50RN -50RE -50REN -50RH -50RHN
M30 1.5 -30R -30RN -30RE -30REN -30RH -30RHN M50 2 -50T -50TN -50TE -50TEN -50TH -50THN
2 -30T -30TN -30TE -30TEN -30TH -30THN 3 -50V -50VN -50VE -50VEN -50VH -50VHN
3 -30V -30VN -30VE -30VEN -30VH -30VHN 1.5 -52R -52RN -52RE -52REN -52RH -52RHN
M31 0.75 -31L -31LN -31LE -31LEN -31LH -31LHN 2 -52T -52TN -52TE -52TEN -52TH -52THN
M52
0.75 -32L -32LN -32LE -32LEN -32LH -32LHN 3 -52V -52VN -52VE -52VEN -52VH -52VHN
1 -32P -32PN -32PE -32PEN -32PH -32PHN 4 -52X -52XN -52XE -52XEN -52XH -52XHN
M32
1.5 -32R -32RN -32RE -32REN -32RH -32RHN 1.5 -55R -55RN -55RE -55REN -55RH -55RHN
M55
2 -32T -32TN -32TE -32TEN -32TH -32THN 2 -55T -55TN -55TE -55TEN -55TH -55THN
待续
