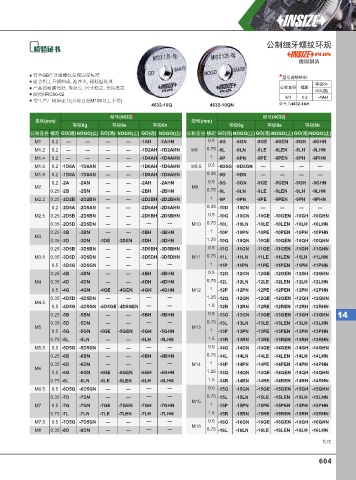

公制细牙螺纹环规

德国制造

符合GB/T普通螺纹量规国家标准 * 型号说明举例:
由含钨工具钢制成, 油淬火, 超低温处理
等级6h
产品的耐磨性好, 寿命长, 尺寸稳定, 光洁度高 公称直径 螺距
GO(通)
硬度HRC60-62
M1 0.2 -1AH
带生产厂检验证书(公称直径M100以上不带)
4632-10Q 4632-10QN 型号为4632-1AH
型号(4632) * 型号(4632)*
规格(mm) 规格(mm)
等级6g 等级6e 等级6h 等级6g 等级6e 等级6h
公称直径 螺距 GO(通) NOGO(止) GO(通) NOGO(止) GO(通) NOGO(止) 公称直径 螺距 GO(通) NOGO(止) GO(通)NOGO(止) GO(通)NOGO(止)
M1 0.2 — — — — -1AH -1AHN 0.5 -8G -8GN -8GE -8GEN -8GH -8GHN
M1.2 0.2 — — — — -1D2AH -1D2AHN M8 0.75 -8L -8LN -8LE -8LEN -8LH -8LHN
M1.4 0.2 — — — — -1D4AH -1D4AHN 1 -8P -8PN -8PE -8PEN -8PH -8PHN
M1.6 0.2 -1D6A -1D6AN — — -1D6AH -1D6AHN M8.5 0.5 -8D5G -8D5GN — — — —
M1.8 0.2 -1D8A -1D8AN — — -1D8AH -1D8AHN 0.35 -9D -9DN — — — —
0.2 -2A -2AN — — -2AH -2AHN 0.5 -9G -9GN -9GE -9GEN -9GH -9GHN
M2 M9
0.25 -2B -2BN — — -2BH -2BHN 0.75 -9L -9LN -9LE -9LEN -9LH -9LHN
M2.2 0.25 -2D2B -2D2BN — — -2D2BH -2D2BHN 1 -9P -9PN -9PE -9PEN -9PH -9PHN
0.2 -2D5A -2D5AN — — -2D5AH -2D5AHN 0.35 -10D -10DN — — — —
M2.5 0.25 -2D5B -2D5BN — — -2D5BH -2D5BHN 0.5 -10G -10GN -10GE -10GEN -10GH -10GHN
0.35 -2D5D -2D5DN — — — — M10 0.75 -10L -10LN -10LE -10LEN -10LH -10LHN
0.25 -3B -3BN — — -3BH -3BHN 1 -10P -10PN -10PE -10PEN -10PH -10PHN
M3
0.35 -3D -3DN -3DE -3DEN -3DH -3DHN 1.25 -10Q -10QN -10QE -10QEN -10QH -10QHN
0.25 -3D5B -3D5BN — — -3D5BH -3D5BHN 0.5 -11G -11GN -11GE -11GEN -11GH -11GHN
M3.5 0.35 -3D5D -3D5DN — — -3D5DH -3D5DHN M11 0.75 -11L -11LN -11LE -11LEN -11LH -11LHN
0.5 -3D5G -3D5GN — — — — 1 -11P -11PN -11PE -11PEN -11PH -11PHN
0.25 -4B -4BN — — -4BH -4BHN 0.5 -12G -12GN -12GE -12GEN -12GH -12GHN
M4 0.35 -4D -4DN — — -4DH -4DHN 0.75 -12L -12LN -12LE -12LEN -12LH -12LHN
0.5 -4G -4GN -4GE -4GEN -4GH -4GHN M12 1 -12P -12PN -12PE -12PEN -12PH -12PHN
0.35 -4D5D -4D5DN — — — — 1.25 -12Q -12QN -12QE -12QEN -12QH -12QHN
M4.5
0.5 -4D5G -4D5GN -4D5GE -4D5GEN — — 1.5 -12R -12RN -12RE -12REN -12RH -12RHN
0.25 -5B -5BN — — -5BH -5BHN 0.5 -13G -13GN -13GE -13GEN -13GH -13GHN 14
0.35 -5D -5DN — — — — 0.75 -13L -13LN -13LE -13LEN -13LH -13LHN
M5 M13
0.5 -5G -5GN -5GE -5GEN -5GH -5GHN 1 -13P -13PN -13PE -13PEN -13PH -13PHN
0.75 -5L -5LN — — -5LH -5LHN 1.5 -13R -13RN -13RE -13REN -13RH -13RHN
M5.5 0.5 -5D5G -5D5GN — — — — 0.5 -14G -14GN -14GE -14GEN -14GH -14GHN
0.25 -6B -6BN — — -6BH -6BHN 0.75 -14L -14LN -14LE -14LEN -14LH -14LHN
0.35 -6D -6DN — — — — M14 1 -14P -14PN -14PE -14PEN -14PH -14PHN
M6
0.5 -6G -6GN -6GE -6GEN -6GH -6GHN 1.25 -14Q -14QN -14QE -14QEN -14QH -14QHN
0.75 -6L -6LN -6LE -6LEN -6LH -6LHN 1.5 -14R -14RN -14RE -14REN -14RH -14RHN
M6.5 0.5 -6D5G -6D5GN — — — — 0.5 -15G -15GN -15GE -15GEN -15GH -15GHN
0.35 -7D -7DN — — — — 0.75 -15L -15LN -15LE -15LEN -15LH -15LHN
M15
M7 0.5 -7G -7GN -7GE -7GEN -7GH -7GHN 1 -15P -15PN -15PE -15PEN -15PH -15PHN
0.75 -7L -7LN -7LE -7LEN -7LH -7LHN 1.5 -15R -15RN -15RE -15REN -15RH -15RHN
M7.5 0.5 -7D5G -7D5GN — — — — 0.5 -16G -16GN -16GE -16GEN -16GH -16GHN
M16
M8 0.35 -8D -8DN — — — — 0.75 -16L -16LN -16LE -16LEN -16LH -16LHN
待续
