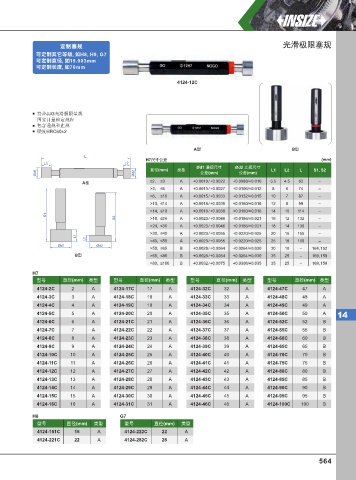

Page 573 - 英示测量INSIZE2025-v.66

定制塞规 光滑极限塞规
可定制其它等级, 如H8, H9, G7
可定制直径, 如19.003mm
可定制⻓度, 如70mm

4124-12C

符合JJG光滑极限量规
国家计量检定规程
包含通规和止规
硬度HRC60±2

A型 B型
L
H7尺寸公差 (mm)
L1 L2
Ød1 通规尺寸 Ød2 止规尺寸 L1 L2 L S1, S2
类型
直径(mm)
Ød1 Ød2 公差(mm) 公差(mm)
A型 ≥2, ≤3 A +0.0010 / +0.0022 +0.0088/+0.010 6.5 4.5 62 –
>3, ≤6 A +0.0013 / +0.0027 +0.0106/+0.012 8 6 74 –
>6, ≤10 A +0.0015 / +0.0033 +0.0132/+0.015 10 7 87 –
>10, ≤14 A +0.0018 / +0.0038 +0.0160/+0.018 12 8 99 –
>14, ≤18 A +0.0018 / +0.0038 +0.0160/+0.018 14 10 114 –
S1
S2 >18, ≤24 A +0.0023 / +0.0046 +0.0186/+0.021 16 12 132 –
>24, ≤30 A +0.0023 / +0.0046 +0.0186/+0.021 18 14 136 –
>30, ≤40 A +0.0023 / +0.0055 +0.0220/+0.025 20 15 155 –
L1
L2 >40, ≤50 A +0.0023 / +0.0055 +0.0220/+0.025 25 18 169 –
Ød1 Ød2
>50, ≤65 B +0.0028 / +0.0064 +0.0264/+0.030 30 18 – 164, 152
B型 >65, ≤80 B +0.0028 / +0.0064 +0.0264/+0.030 35 25 – 169, 159
>80, ≤100 B +0.0032 / +0.0075 +0.0308/+0.035 35 25 – 169, 159
H7
型号 直径(mm) 类型 型号 直径(mm) 类型 型号 直径(mm) 类型 型号 直径(mm) 类型
4124-2C 2 A 4124-17C 17 A 4124-32C 32 A 4124-47C 47 A
4124-3C 3 A 4124-18C 18 A 4124-33C 33 A 4124-48C 48 A
4124-4C 4 A 4124-19C 19 A 4124-34C 34 A 4124-49C 49 A
4124-5C 5 A 4124-20C 20 A 4124-35C 35 A 4124-50C 50 A 14
4124-6C 6 A 4124-21C 21 A 4124-36C 36 A 4124-52C 52 B
4124-7C 7 A 4124-22C 22 A 4124-37C 37 A 4124-55C 55 B
4124-8C 8 A 4124-23C 23 A 4124-38C 38 A 4124-60C 60 B
4124-9C 9 A 4124-24C 24 A 4124-39C 39 A 4124-65C 65 B
4124-10C 10 A 4124-25C 25 A 4124-40C 40 A 4124-70C 70 B
4124-11C 11 A 4124-26C 26 A 4124-41C 41 A 4124-75C 75 B
4124-12C 12 A 4124-27C 27 A 4124-42C 42 A 4124-80C 80 B
4124-13C 13 A 4124-28C 28 A 4124-43C 43 A 4124-85C 85 B
4124-14C 14 A 4124-29C 29 A 4124-44C 44 A 4124-90C 90 B
4124-15C 15 A 4124-30C 30 A 4124-45C 45 A 4124-95C 95 B
4124-16C 16 A 4124-31C 31 A 4124-46C 46 A 4124-100C 100 B

H8 G7
型号 直径(mm) 类型 型号 直径(mm) 类型
4124-151C 15 A 4124-222C 22 A
4124-221C 22 A 4124-282C 28 A

564
