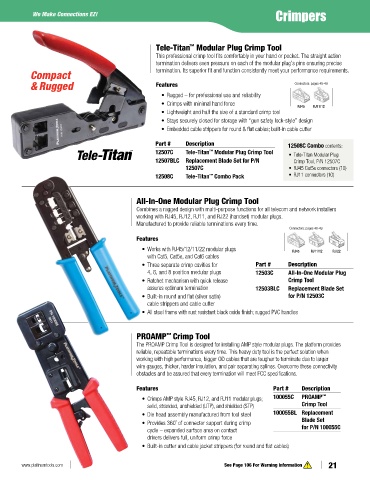

We Make Connections EZ! Crimpers

Tele-Titan Modular Plug Crimp Tool
™
This professional crimp tool fits comfortably in your hand or pocket. The straight action
termination delivers even pressure on each of the modular plug’s pins ensuring precise
Compact termination. Its superior fit and function consistently meet your performance requirements.
& Rugged Features Connectors: pages 48-49

• Rugged – for professional use and reliability
• Crimps with minimal hand force
RJ45 RJ11/12
• Lightweight and half the size of a standard crimp tool
• Stays securely closed for storage with “gun safety lock-style” design
• Embedded cable strippers for round & flat cables; built-in cable cutter

Part # Description 12508C Combo contents:
12507C Tele-Titan Modular Plug Crimp Tool • Tele-Titan Modular Plug
™
12507BLC Replacement Blade Set for P/N Crimp Tool, P/N 12507C
12507C • RJ45 Cat5e connectors (10)
12508C Tele-Titan Combo Pack • RJ11 connectors (10)
™

All-In-One Modular Plug Crimp Tool
Combines a rugged design with multi-purpose functions for all telecom and network installers
working with RJ45, RJ12, RJ11, and RJ22 (handset) modular plugs.
Manufactured to provide reliable terminations every time.
Connectors: pages 48-49
Features

• Works with RJ45/12/11/22 modular plugs RJ45 RJ11/12 RJ/22
with Cat5, Cat5e, and Cat6 cables
• Three separate crimp cavities for Part # Description
4, 6, and 8 position modular plugs 12503C All-In-One Modular Plug
• Ratchet mechanism with quick release Crimp Tool
assures optimum termination 12503BLC Replacement Blade Set
• Built-in round and flat (silver satin) for P/N 12503C
cable strippers and cable cutter
• All steel frame with rust resistant black oxide finish; rugged PVC handles

PROAMP Crimp Tool
™
The PROAMP Crimp Tool is designed for installing AMP style modular plugs. The platform provides
reliable, repeatable terminations every time. This heavy duty tool is the perfect solution when
working with high performance, bigger OD cables that are tougher to terminate due to larger
wire gauges, thicker, harder insulation, and pair separating splines. Overcome these connectivity
obstacles and be assured that every termination will meet FCC specifications.

Features Part # Description
™
• Crimps AMP style RJ45, RJ12, and RJ11 modular plugs; 100055C PROAMP
solid, stranded, unshielded (UTP), and shielded (STP) Crimp Tool
• Die head assembly manufactured from tool steel 100055BL Replacement
• Provides 360˚ of connector support during crimp Blade Set
cycle – expanded surface area on contact for P/N 100055C
drivers delivers full, uniform crimp force
• Built-in cutter and cable jacket strippers (for round and flat cables)

www.platinumtools.com See Page 106 For Warning Information 21
