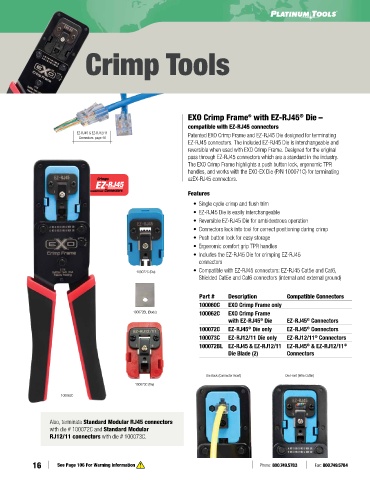

Crimp Tools

EXO Crimp Frame with EZ-RJ45 Die –
®
®
compatible with EZ-RJ45 connectors
EZ-RJ45 & EZ-RJ12/11 Patented EXO Crimp Frame and EZ-RJ45 Die designed for terminating
Connectors: page 46
EZ-RJ45 connectors. The included EZ-RJ45 Die is interchangeable and
reversible when used with EXO Crimp Frame. Designed for the original
pass through EZ-RJ45 connectors which are a standard in the industry.
The EXO Crimp Frame highlights a push button lock, ergonomic TPR
handles, and works with the EXO-EX Die (P/N 100071C) for terminating
ezEX-RJ45 connectors.

Features
• Single cycle crimp and flush trim
• EZ-RJ45 Die is easily interchangeable
• Reversible EZ-RJ45 Die for ambidextrous operation
• Connectors lock into tool for correct positioning during crimp
• Push button lock for easy storage
• Ergonomic comfort grip TPR handles
• Includes the EZ-RJ45 Die for crimping EZ-RJ45
connectors

100072C (Die) • Compatible with EZ-RJ45 connectors: EZ-RJ45 Cat5e and Cat6,
Shielded Cat5e and Cat6 connectors (internal and external ground)

Part # Description Compatible Connectors
100060C EXO Crimp Frame only
100072BL (Blade) 100062C EXO Crimp Frame
with EZ-RJ45 Die EZ-RJ45 Connectors
®
®
100072C EZ-RJ45 Die only EZ-RJ45 Connectors
®
®
100073C EZ-RJ12/11 Die only EZ-RJ12/11 Connectors
®
100072BL EZ-RJ45 & EZ-RJ12/11 EZ-RJ45 & EZ-RJ12/11
®
®
Die Blade (2) Connectors
Die Back (Connector Insert) Die Front (Wire Cutter)
100073C (Die)
100062C

Also, terminate Standard Modular RJ45 connectors
with die # 100072C and Standard Modular
RJ12/11 connectors with die # 100073C.
